Digital Oscilloscope

Order Code: 21225406.2.2

Category: General Lab Equipment I

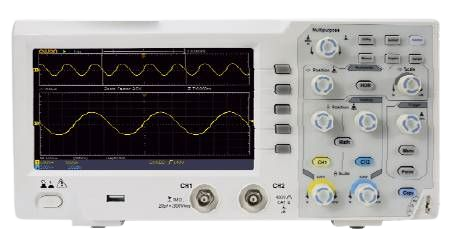

  100Mhz, digital storage oscilloscope, dual channel, coloured LCD 7", 1GS/s, USB+ Software Bandwidth 100 MHz Channels 2 Sample rate on each channel 1.0 GS/s Waveform storage: 16...



SPECIFICATION

  1.
  1. 100Mhz, digital storage oscilloscope, dual channel, coloured LCD 7", 1GS/s,
  2. USB+ Software
  3. Bandwidth 100 MHz
  4. Channels 2
  5. Sample rate on each channel 1.0 GS/s
  6. Waveform storage: 16
  7. Record length: 10K
  8. Power source
  9. Power source voltage 220V TO 240V ±10% AC, CAT II
  10. Power source frequency 50Hz
  11. Power consumption 15W maximum
  12. Probe attenuation factor 1X, 10X, 100X, 1000X
  13. Fuse 2A, T class, 250V
  14. Vetical system – analog channels
  15. Vertical resolution    8 bits (A/D)
  16. Input sensitivity range 5m V/div – 5 V/div
  17. Input coupling AC,DC,GND
  18. Input impedance 1M? ±2% in parallel with 20pF±5pF
  19. Horizontal system – analog channels
  20. Scale 2ns/div – 100s/div, step by 1-2-5
  21. Triggering mode: edge, video
  22. Waveform measurements
  23. cursors
  24. types: amplitude, time
  25. measurements ΔT,ΔV
  26. Appendix B: OSCILLOSCOPE
  27. Automatic measurements
  28. Vpp, vavg, RMS, frequency, period, vmax, vmin, vtop, vbase, width, overshoot, pre-shoot, rise time, fall time, +width, -width,+duty,-duty, delay A→B, delay A→B
  29. Waveform math
  30. Arithmetic           add, subtract, multiply, divide
  31. Math functions    FFT, invert
  32. Autoset menu
  33. Single-button, automatic setup of all channels for vertical,horizontal,and trigger systems
  34.
  35. Accessories
  36. Oscilloscope probe to alligator clip set – 2set
  37. Power cord, manual
