SPECIFICATION

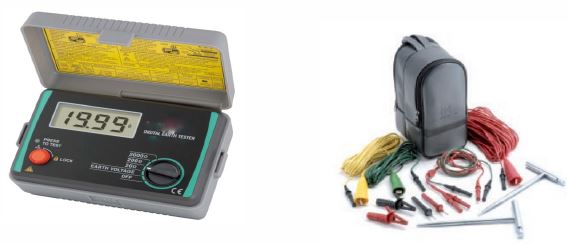

DIGITAL EARTH TESTER
- RCD tester used for measures earth/ground resistance using 2-, 3-, 4-pole fall-of-potential or clamp/ stakeless methods — used for DB, lightning protection and grounding verification.
- SPECIFICATIONS
- Earth resistance measurement 20Ω 200Ω 2000Ω
- Measuring range 0.00 to 2000 Ω
- Display range 0.00 to 20.99 Ω 0.0 to 209.9 Ω 0 to 2099 Ω
- Accuracy*1: ±1.5%rdg±0.08 Ω*2 ±1.5%rdg±4dgt
- Auxiliary earth resistance*3: <10KΩ <50kΩ <100kΩ
- Comparator reference value: 10Ω 100Ω 500Ω
- Earth voltage measurement
- Measuring range : 0 to 300 V AC (45 to 65Hz) ±0 to ±300 V DC
- Display range : 0.0 to 314.9 V 0.0 to ±314.9 V
- Comparator reference value: 10Ω 100Ω 500Ω
- Accuracy: ±1%rdg±4dgt
- Applicable Standards: IEC 61010-1 CAT ? 100V / CAT ? 150V / CAT ? 300V Pollution degree 3 IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5 IEC 60529 (IP67), IEC 61326-1, 2-2
- Power source: LR6(AA)(1.5V) × 6
- Dimension: 121(L) × 188(W) × 59(D) mm (including case lid)
- Weight Approx.: 690g (including batteries and case lid)
ACCESSORIES
- Compulsory Accessories:
- Simplified measurement probe
- Auxiliary earth spikes [2spikes/1set]Shoulder strap
- Cable reel for Earth resistance tester [red:20m]
- Cable reel for Earth resistance tester [yellow:10m]
- Earth resistance test lead [green:5m]
- Carrying caseBattery 1.5V (AA) × 6 Instruction Manual
