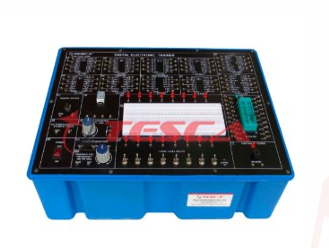

DIGITAL ELECTRONICS TEACHING UNIT
Order Code: 25268723.32
Category: General Lab Equipment V
DIGITAL ELECTRONICS TEACHING UNIT: [1]The unit consists of a metal housing including the usual working elements, such as: Signal generator; Place for pre-mounted plug-in breadboards; Plate for experimental assembly without soldering; Met...
SPECIFICATION
DIGITAL ELECTRONICS TEACHING UNIT:
[1]The unit consists of a metal housing including the usual working elements, such as:
- Signal generator;
- Place for pre-mounted plug-in breadboards;
- Plate for experimental assembly without soldering;
- Metal bracket provided for mounting potentiometers, displays, connectors, etc.;
- Plate with switches for se?ng logic levels, logic displays, BCD encoder wheels, push bu?ons, etc.
- [2]A series of pre-assembled experiment cards are provided, to cover the study topics listed below. [3]Logic gates and functions:
- AND, OR, NOT, NAND, NOR gates
- Boolean algebra, logical functions, reduction;
- De Morgan's theorem, Karnaugh maps;
- [4]Combinational circuits:
- BCD/Decimal and Decimal/BCD encoding converters;
- 4-bit logic comparator;
- 4-bit logic adder;
- digital display: 7 segments.
- [5]Sequential logic:
- counters and down-counters;
- shi? registers;
- RS, T, JK ?ip-?ops;
- Multifunction counting IC;
- 7-segment display.
- [6]Digital Circuit Board:
- 6 x 16-pin sockets;
- 2 x 18-pin sockets;
- 1 x 24-pin socket;
- 1 display, 4 digits, 7 segments.
