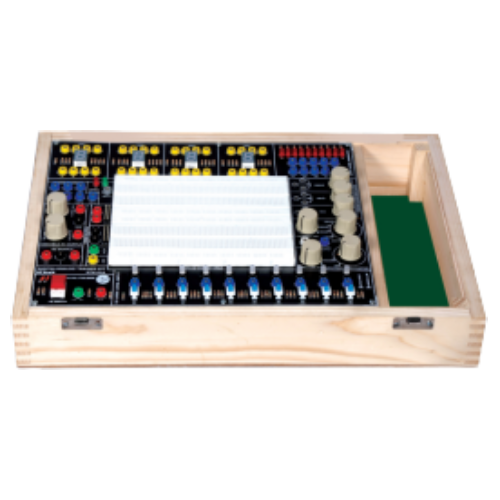

Digital Lab
Order Code: 22236220.1.25
Category: General Lab Equipment I
Indicators : 10 TTL/CMOS Logic Level Inputs With Dual Color Led Indication For Logic Low And Logic High. 10 Led For Output Indication. Clock Generator : Fixed Clock Generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz. Pulse Ge...
SPECIFICATION
- Indicators : 10 TTL/CMOS Logic Level Inputs With Dual Color Led Indication For Logic Low And Logic High. 10 Led For Output Indication.
- Clock Generator : Fixed Clock Generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz.
- Pulse Generator : Logic Pulsar Provides Single Pole Double Throw Bounce Less Pulses Of Low To High And High To Low Transitions.
- Logic Probe : Logic Probe Facility Provided With Led Indicators To Indicate Logic High, Low & Tri-State.
- Potentiometers : Variable Potentiometers Of 1k, 10k 100k Provided On Lboard.
- Bread Board Area : Four Distribution Strip Of 100 Tie Points Each Totaling 400 Tie Points. Two Terminal Strip Of 630 Tie Points Totaling 1260 Tie Points.
- Function Generator (using IC 8038): Provides Sine, Square And Triangular Output Waveforms. Frequency Variable From 0-200 KHz In Five Steps.
- Display : Four Digit Seven-Segment Led Display.
- Power Supplies:
- Fixed Dc Power Supply: +5V, ±12V.
- Variable Dc Power Supply Of +1.2V to +15V & -1.2V to 5V.
- Ac Power Supply Of 15V-0-15V.
- Interconnections : All Interconnections Are Made Using 2mm Banana Patch Lcords.
- All Ics Are Mounted On Ic Sockets.
- Bare Board Tested Glass Epoxy SMOBC Pcb Is Used.
- Attractive Wooden Enclosures Of Light Weight Australian Pine Wood. Set Of 2mm Patch Cords For Interconnections.
- User's Manual With Sample Experimental Programs.
