Digital Logic Circuit Trainer
Order Code: 22236074.70
Category: General Lab Equipment I
Description: This is a robust, user -friendly and self -contained digital training system that teaches the basic fundamental theory of digital electronics, concept, theory, construction of digital electronics circuits and its applicat...
SPECIFICATION
Description:

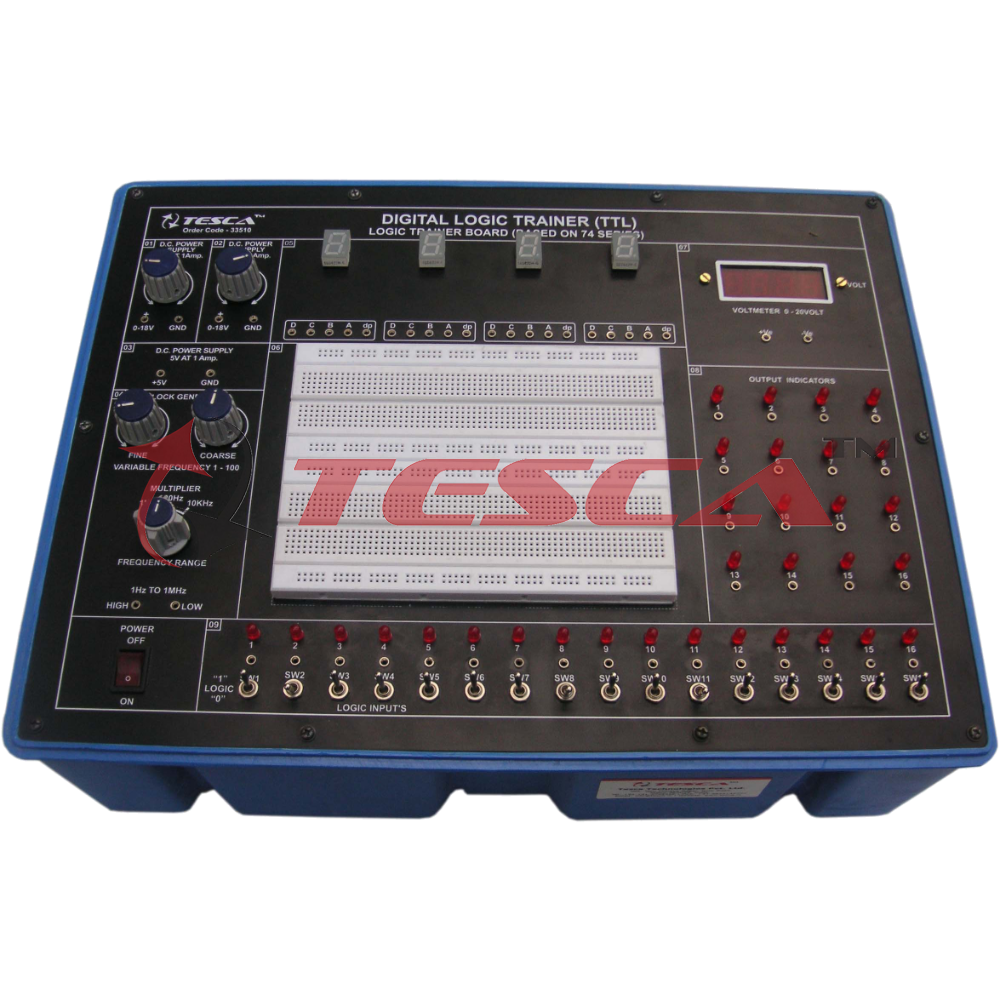

This is a robust, user -friendly and self -contained digital training system that teaches the basic fundamental theory of digital electronics, concept, theory, construction of digital electronics circuits and its application. The main base unit is equipped with various I/O devices on the main system board to facilitate construction of circuit with ease. The system also comes with a comprehensive set of modular experiment board modules that covers most digital logic circuit theory practices and application. Each experimentmodules comprises of clearly labeled component mimic diagrams and dedicated blocks to clearly show users the circuit connection and function of dedicated blocks. Built-in wiring points and test points to ease circuit connection and signal measurements.
Technical Specification
- 1. Solderless Breadboard Interconnected nickel plated contact with 1680 tie-points
- 2. DC Power Supply:
- Variable ±1.5VDC~ ±15VDC/500mA
- Fixed +5VDC/1A
- Fixed -5VDC/500mA
- Fixed +12V/500mA
- Sixteen Bits Output LEDs
- Sixteen Bits Data Input Switches
- Four Slide Data Input Switches
- Two Pulse Switches (with built-in debounced circuit) - outputs
- TTL and complement TTL
- Pulse Signal Generator (Variable):
