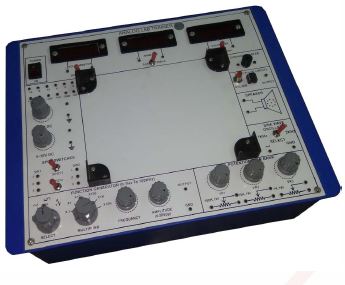

Digital Logic Circuits Training System with Cooling facility

The Digital Logic Circuits Training System consist of below modules:
Basic Logic Gates Circuits (Module 1):

• Logic Gate Structure Circuits (DL, RTL, TTL, CMOS)
• Logic Gate Circuits: AND, NAND, NOT, OR, NOR, XOR gates
• Voltage and Current Measurement (TTL, CMOS)
• Interface between Logic Gates Circuits (TTL and CMOS Transform)
• Transmission Delay Measurement (TTL, CMOS)


Combinational Logic Circuits (Module 2):

• 4 Bits Comparator Circuits
• Tristate and Schmitt Gate Circuits
• Half and Full Adder Circuits
• Half and Full Subtractor Circuits
• 9 Bits Parity Generator

Extended Combinational Logic Circuits (Module 3):

• Arithmetic Logic Unit (ALU) Circuit
• Encoder and Decoder Circuits
• Multiplexer and Demultiplexer Circuits
• Digitally Controlled Analog Multiplexer & Demultiplexer Circuits

Clock Generator Circuits (Module 4):

• Constructing Oscillator Circuit with Basic Logic and Schmitt Gates
• Voltage Controlled Oscillator Circuit
• BJT Astable Multivibrator Oscillator Circuit
• Operational Amplifier Oscillator Circuit
• 555 Astable Multivibrator and Monostable Multivibrator Oscillator

Sequential Logic Circuits (Module 5):

• RS, JK and D Flip-flop Circuits
• Asynchronous & Synchronous Counter Circuit
• Presetably Synchronous Counter Circuit

Memory Circuits (Module 6):

• Constructing Read Only Memory (ROM) Circuit with Diodes
• Constructing Random Access Memory (RAM) Circuit with D Flip-flop
• Programmable ROM & 64-bits RAM Circuit

Converter Circuits (Module 7):

• OPA ADC Circuit
• ADC0804 ADC Circuit
• 4-bits R-2R DAC Circuit
• Unipolar and Bipolar DAC 0800 DAC Circuit

Logic Application Circuits (Module 8):

• Electronics Voting Circuit
• Electronics Wheel-amusement Circuit
• Electronic Competition-answer Circuit
• Traffic Light Circuit
• 02 Sets of 12,000 BTU Cooling facility including accessories
