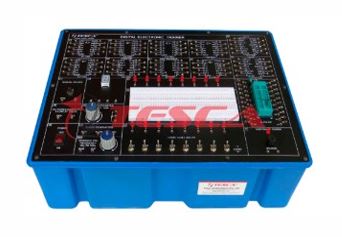

Digital logic Trainer kit for different experiments with built in power supply, generators

Order Code: 25268469R.69

Category: General Lab Equipment V

OBJECTIVE:  To study & verify Truth tables of Basic Logic Gates, Boolean Identities and Demorgan's Theorems  TECHNICAL SPECIFICATIONS:   Fixed output DC Regulated power supply of 5V.  Six Number of Lo...



SPECIFICATION


OBJECTIVE:

To study & verify Truth tables of Basic Logic Gates, Boolean Identities and Demorgan's Theorems

TECHNICAL SPECIFICATIONS:


  • Fixed output DC Regulated power supply of 5V.
  • Six Number of Logic Inputs for Logic & selectable through Push Button switches with output on sockets are provided on the front panel.
  • Five Number of input AND Gates with input & output on sockets are provided on the front panel
  • Five Number of 3 input OR Gatise with input & output on sockets are provided on the front panel.
  • Four Number of NOT Gates with imput & output on sockets are provided on the front panet
  • One 2 input EX-OR Gate with input & outiut on sockets are provided on the front panel
  • Two Number of Output Indicators are provided on the front panel for show the st


SALIENT FEATURES:

  • Front Panel built with high class Glass Epoxy Printed Circuit Board (PCB) with well printed circuits diagram and symbol
  • Connections are brought out through 2mm Brass PCB Sockets
  • The Trainer is housed in ABS Plastic Cabinet
  • Size of the Trainer set 10x


STANDARD ACCESSORIES

  • Instruction Manual
  • Patchcords 4mm.
