SPECIFICATION

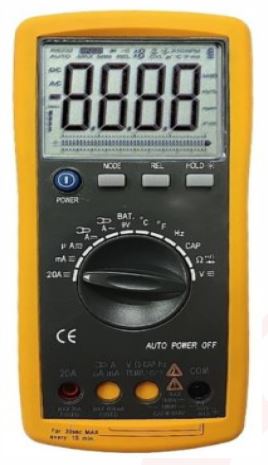

Digital Multi meter
- Terminal Blocking Facility : to prevent wrong connection.
- Overload Protection of 500V DC/AC RMS in the Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Battery Test, Diode Test and Continuity Test Facilities.
- 20A AC/DC Fuse Protected
- Double Molded Housing.
- Data Hold to freeze the displayed data
- Auto Power Off
- Display: 3-¾ Digits 4000 Counts Extra Large Backlit LCD
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.5%
- AC Voltage : 0 – 4V/40V/400V/1000V
- Accuracy : ± 1.2%
- DC Current : 0 – 400uA/4000uA/40mA/400mA/4A/20A
- Accuracy : ± 1.0%
- AC Current : 0 – 400uA/4000uA/40mA/400mA/4A/20A
- Accuracy : ± 1.5%
- Resistance : 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Accuracy : ± 1.0%
- Capacitance : 0 – 40nF/400nF/4uf/40uF/100uF
- Accuracy : ± 3.0%
- Frequency : 0 – 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
- Accuracy : ± 1.2%
- Duty Cycle: 0.1% to 99.9%
- Accuracy : ± 1.2%
- Temperature: -20°C to +760°C / -4°F to +1400°F
- Accuracy : ± 3%
- Battery Test : 9V range
- Accuracy : ± 1%
- Clamp-On AC/DC Current Adaptor can be used to measure 0 – 400A AC/DC
- Accuracy shall be ± 1.5% for AC Measurement and ± 1.0% for DC Measurement.
- Diode Test and Audible Continuity Test
- Confirms to CAT-II 1000V, EN61010-1, CE.
