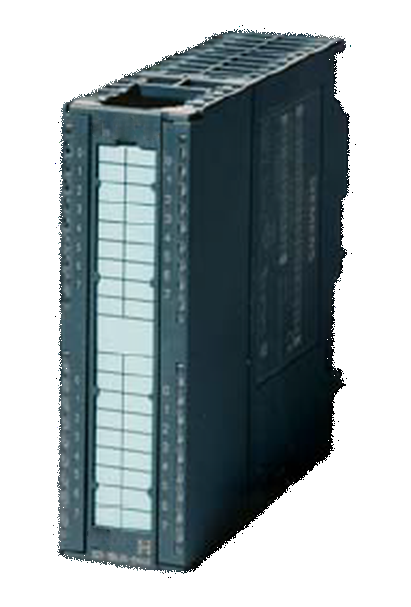

Digital Output Module 32 DO
Order Code: 22235634.14
Category: General Lab Equipment I
Digital output 32 DO, 24 V DC, 0.5A, 1x 40-pole, Total current 4 A/group (16 A/module) Rated value (DC) 24 V Load voltage L+ permissible range, lower limit (DC) 20.4 V Load voltage L+ permissible range, upper limit (DC) 28.8 V Input curren...
SPECIFICATION
- Digital output 32 DO, 24 V DC, 0.5A, 1x 40-pole, Total current 4 A/group (16 A/module)
- Rated value (DC) 24 V
- Load voltage L+ permissible range, lower limit (DC) 20.4 V
- Load voltage L+ permissible range, upper limit (DC) 28.8 V
- Input current from load voltage L+ (without load), max. 160 mA
- Input current from backplane bus 5 V DC, max. 110 mA
- Power loss, typ. 6.6 W
- Number of digital outputs 32
- Short-circuit protection Yes; Electronic
- Response threshold, typ. 1 A
- Limitation of inductive shutdown voltage to L+ (-53 V)
- Controlling a digital input Yes
- Switching capacity of the outputs
- ? on lamp load, max. 5 W
- Load resistance range lower limit 48 Ω
- Load resistance range upper limit 4 kΩ
- Output voltage for signal "1", min. L+ (-0.8 V)
- Output current for signal "1" rated value 0.5 A
- Output current for signal "1" permissible range for 0 to 40 °C, min. 5 mA
- Output current for signal "1" permissible range for 0 to 40 °C, max. 0.6 A
- Output current for signal "1" permissible range for 40 to 60 °C, min. 5 mA
- Output current for signal "1" permissible range for 40 to 60 °C, max. 0.6 A
- Output current for signal "1" minimum load current 5 mA
- Output current for signal "0" residual current, max. 0.5 mA
- Output delay with resistive load "0" to "1", max. 100 μs
- Output delay with resistive load "1" to "0", max. 500 μs
- Switching frequency with resistive load, max. 100 Hz
- Switching frequency with inductive load, max. 0.5 Hz
- Switching frequency on lamp load, max. 10 Hz
- Total current of the outputs (per group)
- Horizontal installation — up to 40 °C, max. 4 A
- Horizontal installation — up to 60 °C, max. 3 A
- Vertical installation — up to 40 °C, max. 2 A
- Cable length shielded, max. 1 000 m
- Cable length unshielded, max. 600 m
