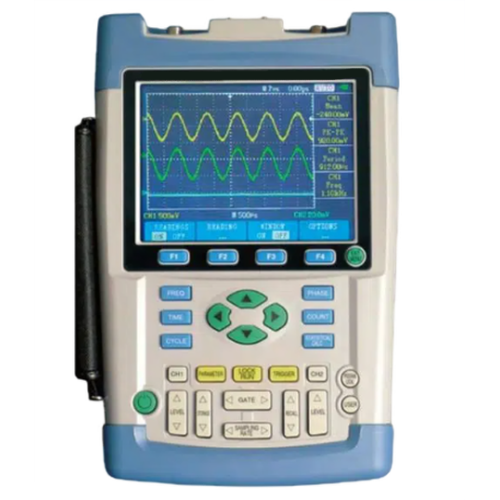

Key Performance Specifications:

• Display : Color
• Bandwidth : 200MHz
• Channels : 2
• Sample Rate on Each Channel : 2 GS/s
• Record Length : 2.5K Points at all-time bases

Vertical System - Analog Channels

• Vertical Resolution : 8 Bits
• Input Sensitivity Range : 2 mV to 5 V/div on all models with calibrated fine adjustment
• DC Gain Accuracy : ±3%, from 10 mV/div to 5 V/div
• Maximum Input Voltage : 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz and above
• Offset range:  2 mV to 200 mV/div: ±1.8 V ,     >200 mV to 5 V/div: ±45 V
• Bandwidth limit: 200 MHz
• Input coupling: AC, DC, GND
• Input impedance :1 MΩ in parallel with 20 pF
• Vertical zoom: Vertically expand or compress a live or stopped waveform

Horizontal System - Analog Channels

• Time Base Range : 2.5 ns to 50 s/div
• Time Base Accuracy : 50 ppm
• Horizontal Zoom : Horizontally expand or compress a live or stopped waveform

Input/ Output Ports:

• USB Interface : USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC
• GPIB Interface : Optional

Data Storage:

• Nonvolatile storage
• Reference waveform display: 2.5K point reference waveforms
• Waveform storage without USB flash drive: 2.5K point
• Maximum USB flash drive size:64 GB
• Waveform storage with USB Flash drive: 96 or more reference waveforms per 8 MB
• Setups without USB flash drive: 10 front-panel setups
• Setups with USB flash drive: 4000 or more front-panel setups per 8 MB
• Screen images with USB flash drive: 128 or more screen images per 8 MB (the number of images depends on file format selected)
• Save All with USB flash drive: 12 or more Save All operations per 8 MB A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)

Frequency Counter:

• Resolution : 6 digits
• Accuracy (Typical) : + 51 parts per million including all frequency reference errors and +1 count errors
• Frequency range: AC coupled, 10 Hz minimum to rated bandwidth
• Frequency counter signal source: Pulse width or edge selected trigger source Frequency counter measures selected trigger source at all times in pulse width and edge mode, including when the oscilloscope acquisition is halted due to changes in run status, or acquisition of a single shot event has completed. The frequency counter does not measure pulses that do not qualify as legitimate trigger events.
• Pulse Width mode: Counts pulses of enough magnitude inside the 250 ms measurement window that qualify as triggerable events (e.g. all narrow pulses in a PWM pulse train if set to "<" mode and the limit is set to a relatively small number).
• Edge Trigger Mode: Counts all pulses of enough magnitude.
• Channels : 2 Channel

Power Source:

• Power Source Voltage : 100 to 240 V ±10%
• Power Source Frequency : 100 to 240 V 50 Hz
• Power Consumption : 30 W Maximum

Standard Accessories:

• Passive Probes : One per channel, 200 MHz passive probe
• Power Cord : 2 Pin Plug
• NIM/NIST : Traceable Certificate of Calibration
• Printed Documentation : Installation and Safety Manual
• CD with Customer Documentation : Customer documentation including detailed user manuals.
