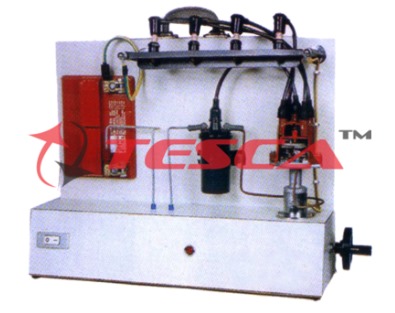

Types of Ignition Systems Included

• Electronic Distributor Ignition System: An updated version that uses electronic components for improved reliability.

• Distributor-less Ignition System (Coil-on-Plug): A modern system where each cylinder has its own ignition coil.

Components

• Each ignition system is equipped with all necessary components for testing and observation, including ignition coils, spark plugs, and wiring.

• The trainer includes a fault box that can simulate various faults for troubleshooting practice.

Digital Displays

• Two digital displays show Dwell duration and ignition timing (measured in degrees before top dead center, BTDC).

• Additional displays for engine speed and battery voltage.

Fault Simulation

• The trainer can simulate up to seven different faults, allowing students to practice identifying and resolving issues in the ignition systems.

Control Panel

• Features a schematic diagram for visual representation of the ignition system operation.

• Includes operational switches and indication LEDs for various components.

Power Supply

• Requires a 12V DC power supply for operation.

Educational Features

• Designed to enhance hands-on skills in troubleshooting and maintenance of ignition systems.

• Comes with a hard copy user manual and software for troubleshooting exercises.

Material and Weight

• Material: Aluminium, Plastic (some parts), Stainless Steel, Iron

• Weight (approx.): 80 kg
