1.0 General Overview

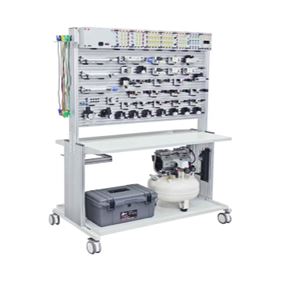

The Electro-Pneumatic System Trainer Kit is a fully integrated double-sided training workstation designed for teaching and demonstrating electro-pneumatic control principles used in industrial automation. The system is engineered for durability, precision, and safe practical training, making it ideal for technical institutions and industrial skill-development centers.
This trainer is supplied complete with commissioning, training, documentation, and accessories as required by the Tanzania Ports Authority for Bandari College – Dar es Salaam. All components are brand new, industrial-grade, and compliant with modern engineering standards.

2.0 Key Features of the Electro-Pneumatic Trainer
The trainer system includes the following essential components :

• Hose lines with quick-release couplings (600 mm, 1000 mm, 1500 mm)
• Safety laboratory cables – 106 pcs (Red, Blue, Black)
• Displacement encoder for cylinder (200 mm stroke)
• Cylinder mounting kit
• 4/3-way proportional valve
• Proportional pressure relief valve
• 5 μm pressure filter
• 4/3-way regulating valve

3.0 Operating Requirements & Capabilities
Designed for realistic industrial simulation, the trainer meets the following operational expectations :

• Industrial-grade valves, actuators, and fittings
• Quick-coupling pipe system for effortless setup
• Pressure endurance up to 10 Bar
• High-strength steel frame with smooth finishing
• Integrated pressure-relief system for safety
• Mobile frame for easy movement
• High-precision solenoid valves with smooth actuation
• Built-in PLC-based electro-pneumatic control module
• Supports essential training exercises: Sequencing, Flow control, Directional control, Pressure regulation

3.1 Air Compressor Unit

• Quiet and robust operation
• Working pressure : 6–10 Bar
• Smooth-finished, securely-mounted air tank
• Integrated air treatment assembly (Filter + Regulator + Lubricator)

4.0 Schedule of Supply
S/N. /  Description / Qty

• Supply, commissioning & training of Electro-Pneumatic Trainer Kit with all accessories  - 1 No.
• Operating Manual (English), hard & soft copies  - 2 Sets
• Service & Maintenance Manual (English), hard & soft copies  - 2 Sets
• Spare Parts & Workshop Manual (English), hard & soft copies  - 2 Sets
• Basic Level Electro-Pneumatic Trainer Book with Exercises  - 2 Sets
• Electrical & Mechanical Tool Boxes with Standard & Special Tools  - 2 Sets
