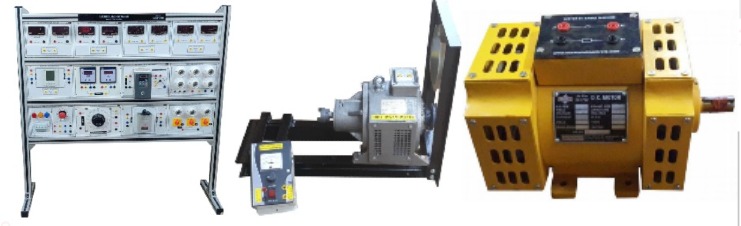

Technical Specification:
FEATURES:
Requires 3-phase power. / 120 -208 VAC
Equipment set consisting of the ff :
Three-Phase Synchronous Motor/Generator
Three-Phase Transformer Bank
Lead-Acid Battery Pack
Timing Belt
Connection Lead Set
Four-Quadrant Dynamometer / Power Supply with Manual
and Computer-Based Control
Specifications :
Dynamometer Mode
Magnetic Torque - 0 to 3 N·m (0 to 27 lbf·in)
Direction of Rotation - CW / CCW
Speed - 0 to 2500 r/min
Nominal Power - 350 W
Power Supply Mode
DC Voltage - 0 to ± 150 V
AC Voltage (RMS) - 0 to 105 V (no-load)
DC Current - 0 to ± 5 A
AC Current (RMS) - 0 to 3.5A
Maximum Output Power - 500W
Communication Port - USB
Power Requirements - 120 V - 6 A - 60 Hz, must include live,
neutral, and ground
wires
Data Acquisition and Control Interface
Four-Pole Squirrel Cage Motor
Resistive Load
Inductive Load
Capacitive Load
Transformer
Permanent Magnet DC Motor
Synchronising Module/ Three-Phase Contactor, 120 V, EN
Manuals:
Power Factor Correction (Workbook)
Power Factor Correction (Workbook (Instructor)
DC Power Circuits (Workbook)
DC Power Circuits (Workbook (Instructor))
Single-Phase AC Power Circuits (Workbook)
Single-Phase AC Power Circuits (Workbook (Instructor)
Three-Phase AC Power Circuits (Workbook)
Three-Phase AC Power Circuits (Workbook (Instructor)
Three-Phase Rotating Machines (Workbook)
Three-Phase Rotating Machines (Workbook (Instructor)
Single-Phase Power Transformers (Workbook)
Single-Phase Power Transformers (Workbook (Instructor)
Three-Phase Transformer Banks (Workbook)
Three-Phase Transformer Banks (Workbook (Instructor)
Permanent Magnet DC Machine (Workbook (Instructor)
Permanent Magnet DC Machine (Workbook)
Level 2 of EMS
DC Motor/Generator
Specifications :
Motor Output Power - 175 W
Generator Output Power - 120 W
Armature Voltage - 120V DC
Shunt Field Voltage - 120V DC
Full-Load Speed - 1800 r/min
Full-Load Motor Current - 2.8 A
Full-Load Generator Current - 1 A
Capacitor-Start Motor
Specifications :
Line Voltage - 120V
Mechanical Power - 175W
Full-Load Speed - 1715 r/min
Full-Load Current - 4.6A
Universal Motor
Conventional DC Machines and Universal Motor (Workbook)
Conventional DC Machines and Universal Motor (Instructor)
Single-Phase Induction Motors (Workbook)
Single-Phase Induction Motors (Instructor)
Other equipment/accessories
Variable Three-Phase Power Supply
Fuse SB 5.0 A
Mobile Workstation
Three-Phase Power Receptable - NEMA L21-20R
Simulation Software for EMS (1 USER)
FREE Inclusion on the package
Electromechanical Systems Simulation Software
System Requirements
Maximum Current : 10 A
Typical Current : 1.5 A per student group
AC Power Network Installation : 3 phases (120/208 V – 60
Hz),
star (wye) configuration including neutral and ground wires,
protected by a 20 A circuit breaker
AC Power Network Connector : NEMA L21-20
