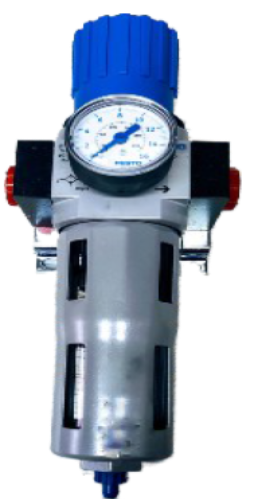

Filter Regulator
Order Code: 21225376.6
Category: General Lab Equipment I
Specifications: Size: Midi Actuator lock: Rotary knob with lock Assembly position: Vertical +/- 5° Grade of filtration: 40 μm Condensate drain: manual rotary Design structure: Filter regulato...
SPECIFICATION
Specifications:
- Size: Midi
- Actuator lock: Rotary knob with lock
- Assembly position: Vertical +/- 5°
- Grade of filtration: 40 μm
- Condensate drain: manual rotary
- Design structure: Filter regulator with pressure gauge
- Max. condensate volume: 43 cm3
- Bowl guard: Metal bowl guard
- Pressure gauge: with pressure gauge
- Operating pressure: 1 ... 16 bar
- Pressure regulation: range 0,5 ... 12 bar
- Max. pressure hysteresis: 0,2 bar
- Standard nominal flow rate: 3.400 l/min
- Operating medium: Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
- Note on operating and pilot medium: Lubricated operation possible (subsequently required for further operation)
- Corrosion resistance classification CRC: 2 - Moderate corrosion stress
- Storage temperature: -10 ... 60 °C
- Air purity class at output: Compressed air in accordance
- Medium temperature : -10 ... 60 °C
- Ambient temperature: -10 ... 60 °C
