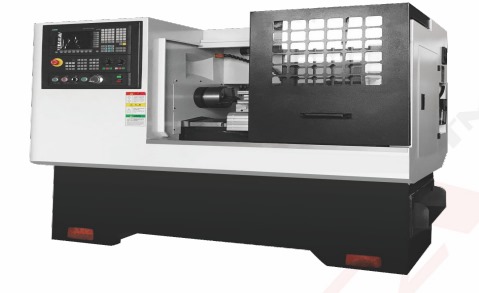

Flat Bed CNC Lathe Machine
SPECIFICATION
Capacity
-
Maximum Swing Over Bed: Ø 400mm
-
Maximum Swing Over Solid: Ø 200mm
-
Maximum Machining Length with Hydraulic Chuck: 1000mm
-
Maximum Bar Diameter with Manual Chuck: Ø 58mm
-
Maximum Bar Diameter with Hydraulic Hollow Chuck: Ø 46mm
Spindle
-
Spindle Taper Hole: Ø 58mm
-
Spindle Speed Range: 60–1800 rpm
-
Spindle Shift Mode: Inverter
-
Main Motor Power: 7.5 kW
Chuck
-
Chuck Type: Hydraulic Solid
-
Chuck Size: Ø 250mm
Axis Travel
-
Rapid Traverse Speed on X-Axis: 5 m/min
-
Rapid Traverse Speed on Z-Axis: 8 m/min
-
X-Axis Travel: 220mm
-
Z-Axis Travel: 1100mm
Turret
-
Turret Type: 4 Station Electric Tool Post + 2 Slot Gang Tool Holder
-
Turret Change Time:
-
90° → 1.5 sec
-
180° → 2.4 sec
-
270° → 3.4 sec
-
-
Turning Tool / Boring Bar Size: 25 × 25mm / Ø25mm
Tailstock
-
Tailstock Type: Manual
-
Tailstock Sleeve Diameter / Travel: Ø75 / 150mm
-
Tailstock Sleeve Taper: MT5
General
-
Guide Way Type: Hardened Box Guide Way
-
Weight: 2100 kg
-
Dimensions (L × W × H): 2350 × 1180 × 1560 mm
