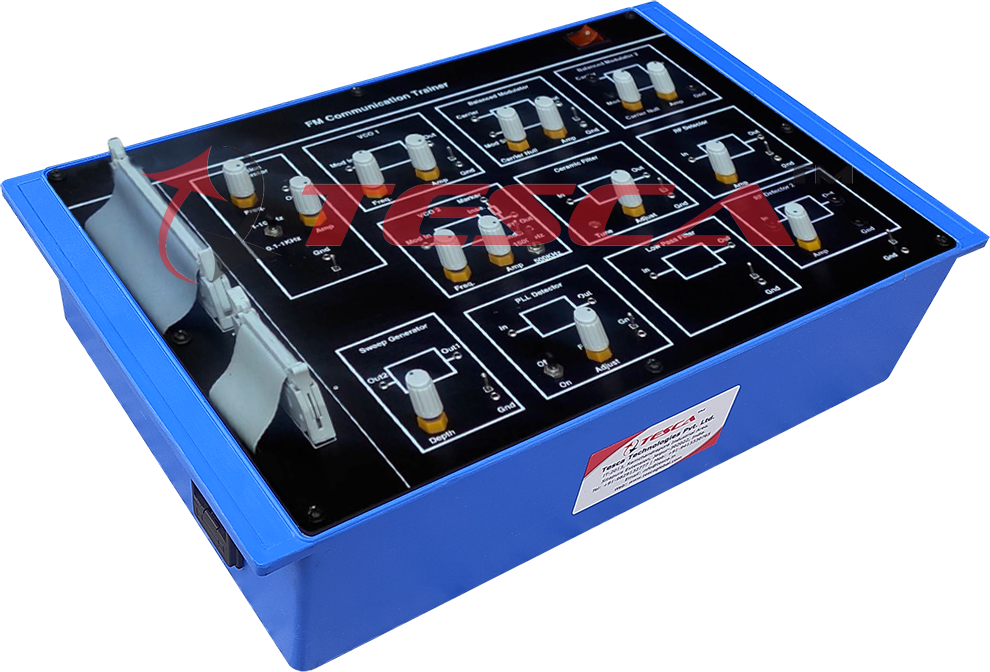

40523 Study of FM Communication is a comprehensive learning solution specifically designed to provide conceptual and step by step understanding of Frequency Modulation and Demodulation techniques through observation of waveforms at various test points and measurement of parameters like Frequency deviation and Modulation index. Block wise modular organization of functional circuits with symbolic representation makes it easy to understand the process of FM generation, FM detection and study of FM Spectrum. The exercises provide a practical approach to the subject and will guide the students to understand each function.

Features

• A self contained platform on FM Communication
• Functional blocks with symbols indicated on mimic
• Onboard adjustable controls for various functional blocks
• Compact size

Experiments

1. Study of Observation of Frequency Modulation
2. Study of Calculation of Frequency deviation and Modulation index
3. Study of Phase Locked Loop detector
4. Study of Quadrature detector
5. Study of Foster-Seeley and Ratio detector
6. Study of Marker insertion to evaluate frequency deviation
7. Study of Spectrum of FM signal

Technical Specifications

• Function Generator
  • Waveform : Sine wave
  • Amplitude : Adjustable from 0 - 4Vpp
  • Frequency : 0.1 to 10 KHz
• VCO 1:
  • Waveform : Sine wave
  • Frequency : 400 KHz to 1500 Khz
  • Amplitude : Adjustable from 0-2Vpp
• VCO 2:
  • Waveform : Sine wave
  • Frequency : 400 KHz to 1500 Khz
  • Amplitude : Adjustable from 0- 2Vpp
• Sweep Depth : Frequency 7 Hz (Adjustable-Depth)
• RF Detector : Input level adjustable
• Balanced Modulator : Adjustable amplitude & carrier null
• Ceramic Band
• Pass Filter : Center frequency 455 Khz
• Bandwidth : 3 ±1 Khz
• FM Detectors : Phase Locked Loop detector Quadrature detector Foster-Seely and Ratio detector
• Interconnections : 2mm banana sockets
• Test Points : 8 nos.
• Weight : 2.5 Kg approximately
• Power Supply : 230 V ±10%, 50 / 60 Hz
• Power Consumption : 2.5 VA approximately
• Operating Conditions : 0-40oC, 80% RH
• Dimensions (mm) : W 340 x D 240 x H 100

Included Accessories

• Patch cord 16"     :     8 nos.
• Mains cord     :     1 no
