Francis turbine demonstration
SPECIFICATION

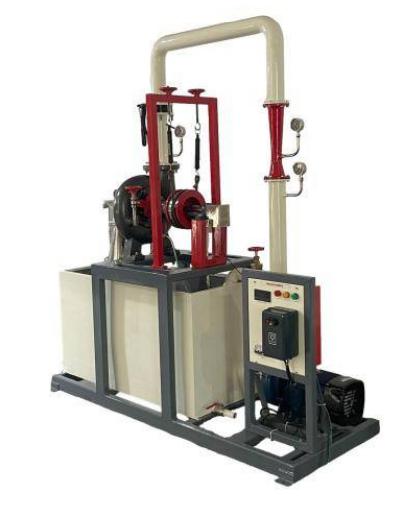

Francis turbine demonstration
- Load Cell Using Load measurement, RPM Sensor using RPM measurement,
- Water flow Sensor using discharge of water.
- Computer Interface through USB Port with software. (PC & printer is not scope of supply).
- This Francis Turbine Test Rig 150 mm size to develop 1 Hp at 1250 RPM with a flow of about 1400 lpm at 20 meters supply head.
- Supply pump set 80 x 80 mm size, 1500 lpm at 20 meter head suitable for supplying water to the above turbine.
- Monoblock Centrifugal Pump: Kirloskar (5 HP, 3 Phases, 440V);
- Pump Size: Suction size 65 mm & Delivery size 80 mm;
- Pump Discharge: 1200 LPM; Delivery Head: 20 meter; RPM: 3000 RPM;
- Sump Tank: SS Tank, Capacity 300 Liter.
- Rope Brake Dynamometer is used to measure the output.
- Spring balance and dead weights are used to measure the load.
- Runner Diameter 220 mm.
- Orifice meter of 53 mm is used to measure the flow rate of water through pressure gauge difference.
- Discharge control valve, by-pass valve of 3" (ISI mark) used to control the flow rate of water.
- Spring Balance: 25 kg & 10 Kg (Salter Make).
- Pressure Gauge of 4 kg/cm² is used to measure the pressure head.
