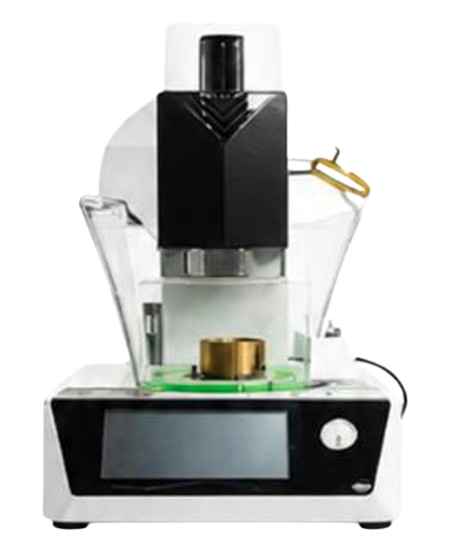

Fully Automatic Penetrometer
SPECIFICATION
Standard:
This Machine Must Be Able To Do Tests According To Standard Astm D5.Standard:
More Specs:
Programmable Reference Positions For Holder Assembly: 8
Programmable Penetration Time: 0-9999 Sec
Programmable Delay Time: 0-999 Sec
Penetration Range: 0-50 Mm
Penetration Resolution: 0.01 Mm
Tests Simultaneously Displayed: Up To 6
Connections: Usb Port For Test Databases And Lan Port For Pc Connection
Notes: Fully Automatic Operation. The Entire Test Cycle (Rapid Approach, Starting Point Determination, Penetration And Return To The Initial Position) Is Automatically Performed By Simply Pressing The Start Button On The Touch Screen Display
Rapid Approach And Automatic Starting Point Determination To Eliminate Any Operator Inaccuracy During Needle Position
Penetration Measurement Via Contactless Displacement Transducer, With 0.01 Mm Resolution
Real Time Display Of Penetration/Time Curve
6″ Color Touch Streen Display, Easy To Use With User-Friendly Software
High Precision Vertical Movement By Stepper Motor
Eight Programmable Reference Positions For The Holder Assembly
Saves Time And Grants First Class Results
Should Be Supplied Complete With Water Bath, Chiller, Needles And Cup
•Astm Thermometer.
•Transfer Dish.
•Penetration Needle With Conformity Certificate
•Should Be Supplied With Chiller For Low Temperature Operation
All Necessary Things And Accessories Must Be Supplied To Make The Tests Needed By The Ministry Of Public Works.
