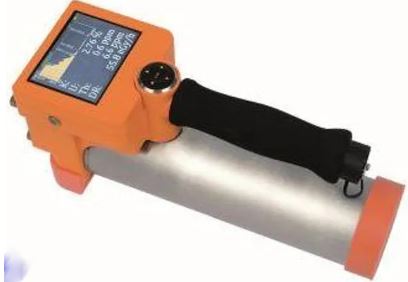

Gamma ray spectrometer
Order Code: 25268416.45
Category: General Lab Equipment V
Gamma ray spectrometer 1. LOW VOLTAGE SUPPLY +15V, -15V, +24V & 5V are generated in LV PCB, to powerup all the circuits. 2. HIGH VOLTAGE SUPPLY: (0 to 1500V) @ 1mA HV is adjustable by a ten turn the helipot & dial. HV Output: ...
SPECIFICATION
Gamma ray spectrometer
1. LOW VOLTAGE SUPPLY +15V, -15V, +24V & 5V are generated in LV PCB, to powerup all the circuits.
2. HIGH VOLTAGE SUPPLY: (0 to 1500V) @ 1mA HV is adjustable by a ten turn the helipot & dial.
- HV Output: Positive polarity
- Ripple & noise : Low the 25mV
- Regulation : Better than 0.5%
3. LINEAR AMPLIFIER PCB
- Input Polarity : Positive or Negative
- Total Gain (Typical) : 600 (Approx.)
- Ouput (Bipolar): 0V to 8V (usable recom mended Linear range)
- Max.Output : 12V (Saturation Level)
- Shaping : 1µsec
4. SINGLE CHANNEL ANALYSER PCB
- Input: Unipolar or Bipolar with a +ve leading edge 0 to 10V
- Output Pulse Polarity: Positive Pulse Amplitude: +5V Pulse Width :0.5 micro sec
- LLD output pulse amplitude: +5V
- Output pulse width: 0.5 micro sec
- Base line variable by : 10 turn helipot / Dial
- Base line variation : 0 to 10V by helical potentiometer
- Window width continously variable by helical potentiometer / Dial
5. Window : 0 -1V in WINDOW mode
6. ULD range: 0.10V in NORMAL mode
7. Including Accessories- Gamma reference standard set of 5 sources
