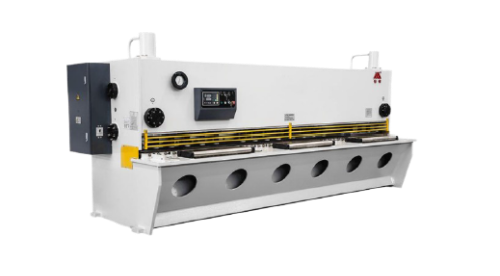

Guillotine Shearing Machine With Controller
Order Code: 21225085.1
Category: General Lab Equipment I
Features:- Guillotine Shearing machine adopt ball screw,linear guide and servo motor to drive the back gauge with high positioning accuracy. Integrated steel welded structure,eliminate stress by vibration,with good rigidity. Adopt the advan...
SPECIFICATION
Features:-
- Guillotine Shearing machine adopt ball screw,linear guide and servo motor to drive the back gauge with high positioning accuracy.
- Integrated steel welded structure,eliminate stress by vibration,with good rigidity.
- Adopt the advanced hydraulic integrated valve block which is in compact structure and will reduce piping connections, and improves system reliability and maintainability.
- Serials connection of oil cylinder to prevent the cutting angle changing during the operation of the shearing machine.
- Accumulator return smooth and rapid.
- Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient.
- Adjustable shear angle to reduce sheet distortion.
- Motorized back gauge and position display make it convenient and precise.
- Rolling material support ball will reduce the scratch and frictions as well.
Specifications:-
- Cutting length: 2500 mm
- Cutting Thickness: Mild Steel - 8 mm Stainless Steel - 4 mm
- Stroke Times: 13-20 Times/mm
- Cutting Angle: 0.5-1.5°
- Backguage Range: 20-800 mm
- Length: 3150 mm
- Width: 1865 mm
- Height: 2055 mm? Oil Tank Capacity: 288 L
- Machine weight: 6500 Kgs
- Main Motor(Kw): #46 Antiwear hydraulic oil
- Power supply: 380V/50HZ/3PH
Standard Components:-
- Controller
- Main Motor
- Hydraulic Valve
- Hydraulic Gear Pump
- Electrical Components
- Ball Screw and Linear Guider
- Press foot/Hold downs
- Guiding Ruler
- Petal Switch
- Oil seal
