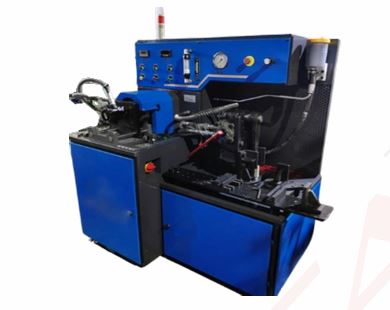

Heavy Vehicles Power Steering Test Bench

Order Code: 25269226.1

Category: General Lab Equipment V

Technical Catalogue Overview The Power Steering Test Bench is a robust, industry-grade testing platform designed for accurate analysis and performance evaluation of power steering pumps, assemblies, and hydraulic components. Built with a high-capa...



SPECIFICATION

Technical Catalogue
Overview

The Power Steering Test Bench is a robust, industry-grade testing platform designed for accurate analysis and performance evaluation of power steering pumps, assemblies, and hydraulic components. Built with a high-capacity drive system, precision measurement instruments, and enhanced safety controls, this bench ensures reliable testing for commercial and automotive steering systems, including Bolero pickup attachments. Its ergonomic layout and strong structural design allow seamless operation, maintenance, and long-term durability in workshop and training environments.
Key Features

  • Heavy-duty two-speed motor (700 / 1400 RPM) housed in a 10 HP-rated body for enhanced endurance.
  • High working pressure up to 240 bar for testing a wide range of power steering components.
  • Digital monitoring for temperature, RPM, and phase sequence (R, Y, B).
  • Integrated safety system with emergency stop, stop/start indicators, and inbuilt pressure relief valve.
  • 360° vertical adjustable power steering bracket for flexible mounting.
  • Equipped with tower lamp and bench lamp for improved visibility during testing.
  • Suitable for Bolero pickup steering testing with dedicated attachment.
  • Includes 5 pump flange ports for multi-model compatibility.

Parameter / Specification

  • Maximum Working Pressure : 240 Bar
  • Motor Speed (Forward/Reverse) : 700 / 1400 RPM
  • Motor Type : 2-Speed Motor (5 HP performance in 10 HP body)
  • Pressure Relief Valve : Inbuilt
  • Pump Flange : 5 Nos
  • Flow Meter : 37 LPM, 240 Bar (AW-Lake)
  • Pressure Gauge : 4000 psi (WIKA)
  • Temperature Display : Digital Temperature Meter
  • RPM Display : Digital RPM Meter
  • Phase Monitoring : Digital R-Y-B Phase Indicator
  • Indicators : Stop & Start Indicator
  • Safety Control : Emergency Stop Switch
  • Test Attachment : Power Steering Test Attachment for Bolero Pickup
  • Power Input : 4-Core Supply with Indication Mode
  • Steering Bracket : 360° Vertical Adjustable (Custom Designed)
  • Lighting : Tower Lamp + Bench Lamp
