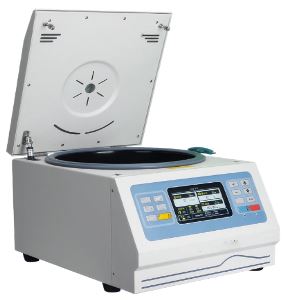

High Speed Centrifuge

1. Application: A tabletop centrifuge is a medium-capacity centrifuge used for the separation of milliliter heterogeneous mixtures or samples. This device works by spinning the samples loaded in various rotor types at high speed. It undergoes a centrifugation process which involves the use of centrifugal force for the separation of particles or macromolecules and preparation of samples for analysis of Organic Carbon.

Feature:

1. LCD screen with clear indication of running condition including rotor, speed, time
2. An error message is displayed on LCD for troubleshooting
3. An audible alarm is activated during system failure
4. Programs Storage: at least 99
5. All rotor, buckets, lids, and adapters are autoclavable (20 min, 121°C).
6. Operation panel is water-proof

Technical specifications:

1. External Dimensions (W×D×H) mm: 438 × 532 × 374 (±10mm)
2. Maximum Noise Level: ≤ 68 dB(A)
3. Relative Centrifugal Force range: Min. 10 to Max.24320 × g
4. Max. Relative Centrifugal Force Swing-bucket Rotor: 3780 × g
5. Speed Range: Min. 200 to Max. 15000 rpm
6. Fixed-angle: at least 6 x 250 ml
7. Swing-bucket: at least 4 x 250 ml,
8. Microtiter plates: 2 x 3 MTP
9. Number of Rotor Options: at least 11
10. Acceleration / Deceleration Rates: 10 / 10
11. Program Storage: at least 99
12. Temperature Setting Range: N/A (Ambient)
13. Time Set Range: 99 hrs 59 mins / 59 min 50 s in 1min / 10s increments /continuous
14. Construction:
15. Main Body: Electrogalvanized steel with Isocide™ antimicrobial powder-coated finish
16. Chamber: stainless steel, grade 304
17. Power Supply: AC 220-240V with adapter
18. Net weight: 49kg (±6kg)
19. Accessories include:
20. Angle rotor for 6 x 85 ml tubes, with std. cover, Max.
21. Speed:11000 rpm
22. Adapter 6 pcs x 50 ml Falcon, Ø 29 mm; length 118 mm
23. Adapter 6 pcs x 15 ml Falcon, Ø 17 mm; length 120 mm
24. Angle rotor for 24 x 1.5/2.0 ml tubes, with an aerosol tight cover, Max. speed:15000 rpm

Requirement:

1. Standard and Compliance: ISO 9001, ISO 13458 and IEC 61010 or equivalent.
2. Language: English language available on machine and manual.
3. Warranty: At least 2 years on Mechanical, Electrical parts and Services.
4. Include Installation and Training:
5.   • On-site installation performed by certified technicians.
6.   • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
7.   • Provision of training materials, including user manuals.
