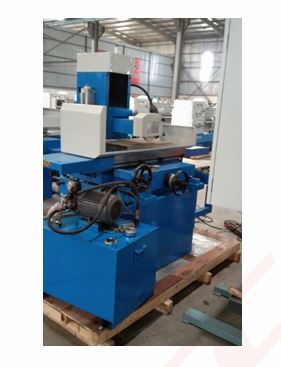

Hydraulic Surface Grinder
Order Code: 25268467.12
Category: General Lab Equipment V
OVERVIEW: High Precision Hydraulic Surface Grinder, Magnetic chuck size 600 x 300 Complete with Wheel Flange, Grinding Wheel, Wheel Dresser, Electric Motor, Spanner, Wheel Puller, Coolant System, Electric Panel Board, Cen...
SPECIFICATION
OVERVIEW:
High Precision Hydraulic Surface Grinder, Magnetic chuck size 600 x 300 Complete with
Wheel Flange, Grinding Wheel, Wheel Dresser, Electric Motor, Spanner, Wheel Puller,
Coolant System, Electric Panel Board, Centralized Lubrication System, Hydraulic Power Pack
and Permanent Magnetic Chuck.
TECHNICAL SPECIFICATIONS:
- Grinding Capacity: LXWXH - – 600 X300 X 300 mm
- Longitudinal table travel – 620 mm
- Cross table travel – 325 mm
- Max. Distance from the spindle Centre to the work table surface – 400 MM
- Safety load of bench (in Max) – 150 KG
- Table size – 600 X 300 MM
- T-slot – 14 X 1 MM
- Bench speed – 3-23 m/min
- Cross auto feed – 0.6-10 mm/div
- Cross hand wheel per Graduation – 0.02 MM
- Cross hand wheel per Revolution – 3 MM
- Grinding Wheel size (DXWXD) – 200 X 16 X 32 MM
- Spindle Speed – 2850r/min
- Max. Movement of Vertical Mechanism – 400 mm
- Vertical fine adjustment Revolution – 0.15 mm
- Vertical per fine adjustment Graduation – 0.002 mm
- Spindle motor – 1.5 Kw
