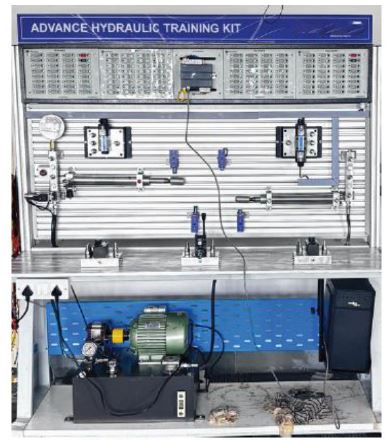

Hydraulics Training Kit

1. The system shall allow free configuration of hydraulic control circuits and be fully usable for skills-test preparation
2. For training convenience, components shall be miniature versions of those used in industry All connection fittings and hoses shall incorporate check valves and ensure zero oil leakage
3. All components shall be mountable on a profile practice panel, with a safety locking device when mounting
4. Provide a secure quick release/quick mount mechanism allowing safe horizontal/vertical installation and
5. easy attach/detach; equivalent mechanisms accepted.
6. Electrical parts shall operate at DC 24 V, and Electrical connection sockets shall be compatible with
7. standard laboratory safety leads (e.g., 2 mm **or** equivalent), suitable for low power training use.
8. Case size: 750 × 550 × 250 mm, with handle and wheels (± 5 mm tolerance acceptable)
9. Power consumption: 0.37 kW (1/2 HP)
10. Supply: AC 220 V, single-phase; 2.9 A
11. Discharge flow: 1.1 L/min
12. Tank capacity: 2 L
13. Pump: external gear pump ×1
14. Operating pressure: 0.5–6 MPa
15. Distribution block with pressure gauge
16. Pressure ports: 2, Drain ports: 2
17. Column connection port: Ø30
18. Hand lever, spring return
19. Max operating pressure ≈ 12 MPa
20. Sub-base with internal conduit and connector
21. Snap-in 2-way one-touch mounting; cam/spring clamp as above.
22. Hand lever, spring return
23. Max operating pressure ≈ 12 MPa
24. Sub-base with internal conduit and connector
25. Snap-in 2-way one-touch mounting; cam/spring clamp as above.
