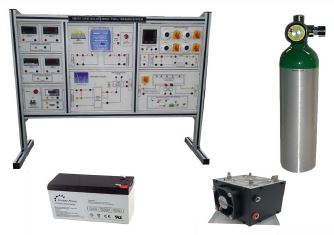

Hydrogen Fuel Cell Systems Trainer
SPECIFICATION
Hydrogen Fuel Cell Systems Trainer
- Hydrogen Fuel Cell Systems Trainer: Fuel Cell Trainer: Dimensions (WxHxD) 910 x 840 x 460 mm Weight 19 kg Permissible ambient temperature during operation: +5 … +35°C Language versions: German, English (other languages on request) Connection standards: DIN, CGA or BS Mains connection: 230 V (50 Hz), 115 V (60Hz) Fuel Cell Module: Rated output: 40 W Maximum output approx. 50 W No-load voltage 9 V Current at rated output 8 A Hydrogen consumption at rated output approx. 580 sml/min Hydrogen purity for operation min. 4.0 (99.99%) Permissible hydrogen pressure 0.4 … 0.8 bar Electronic Load Module: Maximum continuous power output 100 W Load voltage 1.2 … 20 V DC Load current 0 … 10 A Mains connection 230 V (50 Hz), 115 V (60 Hz) Dimensions (WxHxD) 400 x 297 x 135 mm DC/DC Converter Module : Input voltage 4.5
- 10 V DC Output voltage 12 V DC Max. input current 10 A Dimensions (WxHxD) 200 x 297 x 95 mm Traffic Light Module: Input voltage 12 V DC Power consumption max. 10 W Dimensions (WxHxD) 200 x 297 x 140 mm H2 Storage Module Storage capacity (at charge pressure of 17 bar) Output 1.7 sl/min Charge pressure 10 … 17 bar Charge time ca. 1 h at 20°C and active cooling Hydrogen Generator HG72 15 bar H2 connection kit
