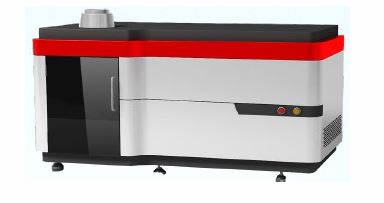

ICP Optical Emission Spectrometer

Order Code: 25269498.2

Category: General Lab Equipment V

ICP Optical Emission Spectrometer



SPECIFICATION

Specification

  • Wavelength Range            : 160 to 1000 nm
  • Grating                     : Middle step grating, 52.67 lp/mm, 64° sparkle angle
  • Numerical Aperture          : F < 8, ultra-high luminous flux
  • Target Size                 : 27.6 mm × 27.6 mm, 1024 × 1024 addressing detection units
  • Resolution                  : < 0.0065 nm at 200 nm
  • Astigmatism                 : Equivalent background concentration of 10000 ppm Ca solution at As 189.042 nm < 2 ppm
  • Light Chamber               : Precision constant temperature, 35 ± 0.1°C, nitrogen purging (normal: 1.8 L/min, fast: 3.8 L/min)
  • Plasma Argon Flowmeter      : 100 to 1000 L/h (1.6 to 16 L/min)
  • Auxiliary Argon Flowmeter   : 100 to 1000 L/h (0.16 to 1.6 L/min)
  • Auxiliary Carrier Argon Flowmeter : 100 to 1000 L/h (0.16 to 1.6 L/min)
  • Noise               : 0.0005 A @ 500 nm
  • Display             : 10.1-inch TFT colored capacitive touch screen
  • Baseline flatness   : ± 0.001 A
  • Printer port        : Parallel port
  • Work mode           : T, A, C, E
  • Scanning speed      : Hi, Med, Low (Max. 3000 nm/min)
  • Wavelength setting  : Auto
  • Cuvette holder      : 10 mm single hole cell holder
  • Dimension           : 880 × 690 × 520 mm
  • Gross weight        : 45 kg
