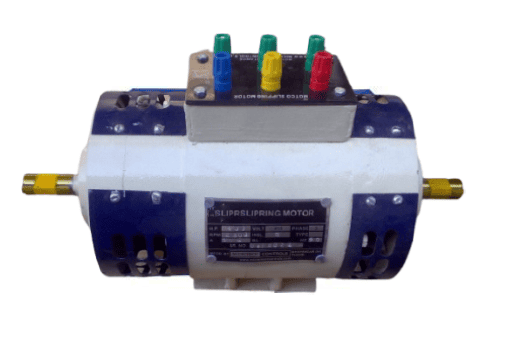

Key Features: Ideal for technical education and hands-on industrial training. Demonstrates various speed control methods including rotor resistance and VVVF drives. Study effects of abnormal conditions such as single phasing ...
Key Features:
Ideal for technical education and hands-on industrial training.
Demonstrates various speed control methods including rotor resistance and VVVF drives.
Study effects of abnormal conditions such as single phasing and voltage imbalance.
Safe terminal arrangements for independent wiring and circuit study.
Suitable for understanding motor characteristics, efficiency, and maintenance.
Parameter | Specification |
---|---|
Available Power Ratings | 350W / 750W / 1kW / 2kW / 3kW / 5kW |
Input Voltage | 440V AC, 50Hz |
Rated RPM | 1440 / 2880 RPM |
Motor Type | TEFC (Totally Enclosed Fan Cooled) |
Protection Class | IP44 |
Cooling Type | IC01 |
Mounting | B3 |
Insulation Class | Class B |
Duty Type | S1 (Continuous Duty) |
Construction | Heavy-duty casting body |
Shaft | Single / Double Shaft Extension |
Direct-On-Line (DOL) starting
Reduced voltage starting
Speed variation using external rotor resistance
Speed control using VVVF (Variable Voltage Variable Frequency) drive
Load test and no-load test
Speed-Torque characteristic analysis
Voltage-Speed relationship
Speed reversal
Efficiency analysis
Blocked rotor testing
Cold and hot resistance measurement
Study of motor operating parameters
Basic overhauling and maintenance training
