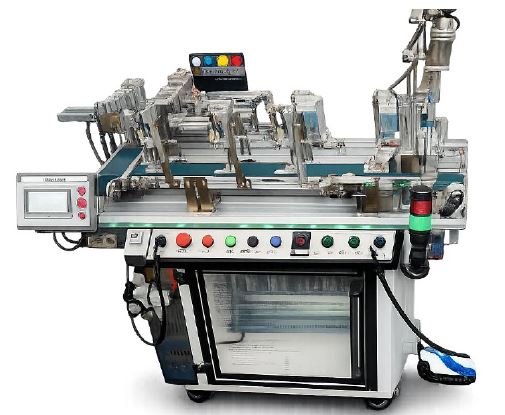

Inspection and Sorting Process Station

1. This equipment is intended for smart-factory education and shall meet that purpose; it must be configured as a system capable of producing commercially usable products and, as training equipment, ensure robustness and stability
2. By utilizing necessary sensors and software, integrated management of all functions shall be possible, and data acquired during work processes shall be stored and monitored
3. For trainee safety across all processes, the system shall be built as a smart-factory platform that supports supervision, maintenance, and workplace safety management, and shall allow performance upgrades The system shall add intelligence and optimization to manufacturing processes through the convergence of IoT-based software development, communications, sensor application/development, and automatic control technologies
4. The equipment shall be composed and manufactured using convergence technologies (IT, software, IoT, etc.), and shall enable customized practice for all processes - parts supply, assembly, and inspection - based on advanced manufacturing technologies such as IoT and process simulation
5. Using dedicated software, the system shall implement equipment layout, control design, production simulation, and operation monitoring within a single package.
6. The training system shall allow easy on-site checks via various mobile devices and support the corresponding training activities.
7. For user safety, the equipment shall be enclosed in a case housing; electrical wiring and pneumatic hose routing shall be handled via ducts and cable chains.
8. All components of all devices shall be brand-new, unused items
9. Drive – DC 24V motor drive
10. Operation mode : Forward-On, Reverse-Off
11. Diameter : >= 16 mm
12. Cylinder Stroke : >= 60 mm
13. Allowable Operating Pressure : 1.0 MPa
14. Flow Control Valves : 2ea
15. Magnetic Sensors : 2ea
16. Normally-open contact (LED built-in)
17. Operating Voltage : 12-27 V DC/AC
18. Diameter : >= 20 mm
19. Cylinder Stroke : >= 50 mm
20. Allowable Operating Pressure : 1.0 MPa
21. Operating Voltage : 12-27 V DC/AC
22. Internal Volume: >= 51 cm3
23. Allowable Operating Pressure: 1.0 MPa
