Interactive digital source meter
Order Code: 25268416.42
Category: General Lab Equipment V
Interactive digital source meter Voltage Source and measure ranges: 20mv to 200V. Voltage resolution: Measure: 10 nV. Source: 500 nV. Current Source and measure range: 10 nA to 1A. Voltage accuracy: 0.100% + 150 μV @ 20 mV. Current a...
SPECIFICATION

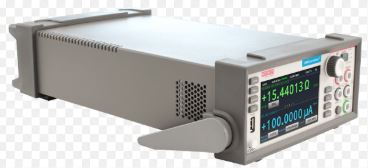

Interactive digital source meter
- Voltage Source and measure ranges: 20mv to 200V.
- Voltage resolution: Measure: 10 nV. Source: 500 nV.
- Current Source and measure range: 10 nA to 1A.
- Voltage accuracy: 0.100% + 150 μV @ 20 mV.
- Current accuracy: 0.10% + 50 pA @ 10 nA.
- Sweep types: Linear,log, Dual Linear, Dual Log, Custom, Source Memory mode.
- Programming interfaces supported: USB, GPIB, Ethernet (LXI), TSP.
- Signal supported connectors: Front Panel Banana Jacks.
- Measurement speed: 3000 readings / sec.
- Measurement mode: Voltage, current,Resistance, power.
- Digital I/O interface: 9 –Pin Female D connector 6 I / O user programmable with IV
- Software Accessories: With four nos. of Triax cables to measure low current and sample holder with two or four probes measurements.
- 4 probe setup Programmable temperature furnace with sample holder (4 probes) with max sample of 25mm diameter x 5 mm thick for 600oC.
