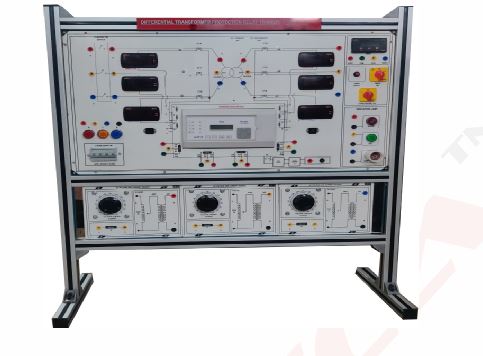

Key features :

• Pick up test for differential relay.
• Transformer protection for in zone trips faults.
• Transformer out zone or non trip faults.
• Use of Three Phase Transformer

TECHNICAL SPECIFICATIONS
Power Supplies :

• Operated on Mains power 415V, 50Hz +10%
• Current Source: 440V/24V/20A 3Nos.
• Auxiliary Supply for Relay: +24V DC, 10A

THREE PHASE POWER SUPPLY MODULE (415V,50Hz)

• MCB
• Emergency Stop
• R-Y-B Indicator

DIGITAL METER MODULE (FOR AC)

• Digital Ammeter AC 6Nos.
• Digital Timer

TRIPPING INDICATION MODULE

• Lamp Holder 230V (2Units)
• Indication Lamp
• Control Switch.

CURRENT TRANSFORMER MODULE

• Current Transformer (3Units)

DIFFERENTIAL PROTECTION RELAY MODULE

• Numerical type Differential Protection Relay: Numerical type High speed biased differential relay, current rating 1A, with biased setting of 15%, 30% and 45% by plug board taps, Aux. supply 110VDC
• RS232 PORT FOR PC COMMUNICATION, RELAY SETTING WITH SOFTWARE ON CD, RS232 TO USB CONVERTER FOR USB INTERFACE
• Buzzer/Indicator

3PHASE CURRENT SOURCE MODULE

• Circuit for Differential Protection Relay

SALIENT FEATURES :

• Front panel built with high class insulated Printed Circuit Breaker well printed circuits and symbols.
• Instruction manual.
• Patch Cords 4mm (Heavy Duty) 1Meter Length.
• High Voltage Test Points are Provided With 4mm Safety Sockets
• The trainer is housed in Modular Based Rack Type Aluminum Extruded Metal cabinet.

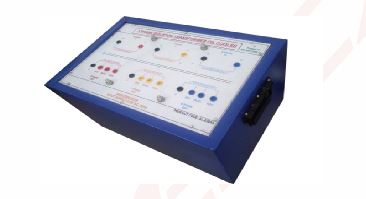

TECHNICAL SPECIFICATIONS
Power Supplies :

• AC Power Supply 440/220V AT 3KVA
• Operated on Mains power415, 50Hz +10%

SALIENT FEATURES :

• Rating 1KVA per Phase
• Transformer ration is Step down 2:1.
• 440V with Tapping at 0%, 0%, 86.6% and 100%.
• High insulation copper winding.
• Transformer rating is available up to 1-10KVA.
• Front panel built with high class insulated Bakelite sheet with Sticker well printed.
• Instruction manual.
• High Voltage Test Points are Provided With 4mm Safety Sockets/BTI-15 Terminals
• The trainer is housed in Metal cabinet.
• Short Circuit protection with the Fuse.
• Size of the trainer set 18”x12”
