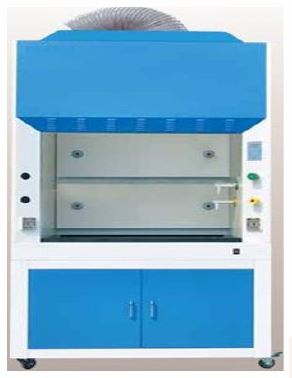

Laboratory Fume Hood

• Brand new, ducted-type laboratory fume hood designed for acid/base handling
• Full extraction system included
• High chemical resistance and corrosion-proof materials
• Easily demountable for relocation or maintenance
• Compliance with EN 14175 or equivalent relevant international safety and performance standards.

Minimum Technical Specifications:

1. Width: 1800 mm ±50 mm
2. Depth: 900 mm ±25 mm
3. Height: 1900 - 2100 mm (including base cabinet)
4. Interior liner: Polypropylene, fiberglass or phenolic resin
5. Work surface: Epoxy resin, ceramic or Trespa
6. Sash: Tempered laminated safety glass with smooth vertical sliding
7. Frame/Housing: Epoxy-coated or powder-coated stainless steel (corrosion-resistant)
8. Electrical outlets: 2 - 4, splash-proof, 220V Base cabinet: Chemical-resistant, ventilated, with spill containment lip
9. Airflow: Between 900–1500 m³/h, adjustable
10. Ventilation Speed: 0.3–0.5 m/s at working face
11. Voltage: 220-240 VAC, 50 Hz
12. Electrical insulation: Class I or equivalent safety standard
13. Ventilation type: Double rear wall airflow system Sash opening: 400-810 mm, preferably adjustable
14. Noise Level: < 65 dB(A) at 1 meter,
15. Lighting: ≥ 800 Lux, sealed LED lighting
16. Airflow monitor: Digital display with audible/visual alarm for real-time airflow monitoring
17. Duct material: PVC or equivalent, acid-resistant
18. Blower: External centrifugal fan, acid-resistant Air volume: 800-1200 Cubic Feet per Minute (CFM) or 900-1500 m³/h
19. Worktop: chemical resistant, epoxy resin, ceramic or AISI 316 stainless steel
20. Under-bench cabinet: Chemical resistant, metal or plastic, explosion-proof, vented, epoxy painted or PVC, for acids and alkalis.
21. External Motor (Extractor): Acid fumes and vapours extraction with speed of 1400, 2800 RPM, Noise Level: <70dB(A) at 1 meter with silencer, Power: 0.75-1.5 kW,  Static Pressure: 800-1500 Pa, Airflow Capacity: 900 – 1500 m³/h.
