SPECIFICATION

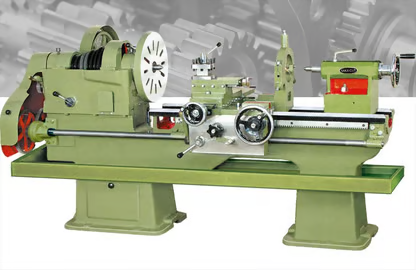

- Type: Gap-bed center lathe for general-purpose turning, boring, threading, facing, and taper turning. Industrial-grade construction for training environments:
- Swing over Bed: Minimum 330 mm
- Swing over Cross Slide: 190-200 mm
- Swing in Gap: 470-480 mm
- Gap Length: 205-220 mm
- Centre Height: 165-170 mm
- Distance between Centres: Minimum 1,000 mm
- Bed Width: 180-190 mm
- Bed Materials: High-grade cast iron (GG25 or Equivalent), stress relieved; ways inductionhardened and precision ground, min. 50 HRC
- Spindle Bore: Minimum 38 mm
- Spindle Nose: D1-4" (Camlock type) per IISO 702-1
- Spindle Taper: MT No. 5 (ISO 296)
- Spindle Speeds: Minimum 8 selectable speeds; range 70 - 2,000 rpm or higher
- Cross Slid Travel: 170-180 mm
- Compound Rest Travel: 90-100 mm
- Thread Pitches-Imperial: Minimum 34 pitches: 4 -56 TPI
- Thread Pitches-Metric: Minimum 26 pitches: 0.4 -7 mm
- Gear Box: Norton-type quick-change gearbox for thread cutting and feeds.
- Power Source: 380 - 400V AC, 50Hz, 3-phaso. Foot-switch brake.
- Digital Readout: 3 axis DRO resolution 0.001mm (strongly recommended-Include ln offer.
