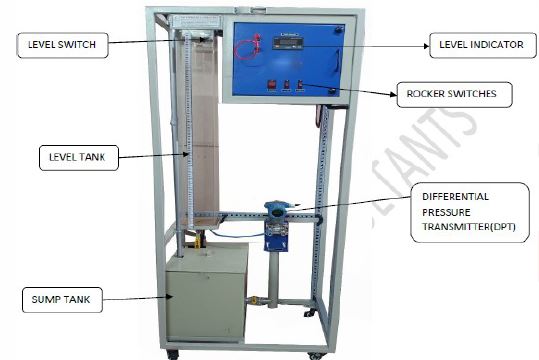

LEVEL MEASUREMENT USING DPT
SPECIFICATION
LEVEL MEASUREMENT USING DPT
Key features
- Compact Ergonomic Design.
- User Friendly, Self Explanatory Systems.
- Leak proof Safety Measures.
- Enhanced Electrical Safety Considerations.
- Training Manuals for Operation Ease.
- Inbuilt Safety Measures to avoid improper usage.
- Castor wheel mounted movable frame
Technical Specifications
- Level Tank - Dimension: 6”X 6”X24”, Material P.P. 5mm thick, With Acrylic Front Fascia
- Sump tank - 24” × 24” × 15” Material: P. P
- Submersible Pump - Supply of 1φ 230 VAC
- Differential Pressure Transmitter - Range: - 400 to 400 in H2O, Output: 4-20 mA, 2- Wire HART Compatible
- Power supply: 24 V DC, 30 mA
- Level Indicator - 3 ½ Digit Display, Inbuilt 24VDC Supply, 1φ 230 VAC Power Supply
- Control Panel - MS Powder Coated Frame with Indicator , Switches & Level Indicator on front fascia
Range of Experiments
- STUDY OF LEVEL MEASUREMENT USING DPT.
System Dimension - 26” (L) X 18” (W) X 67” (H)
