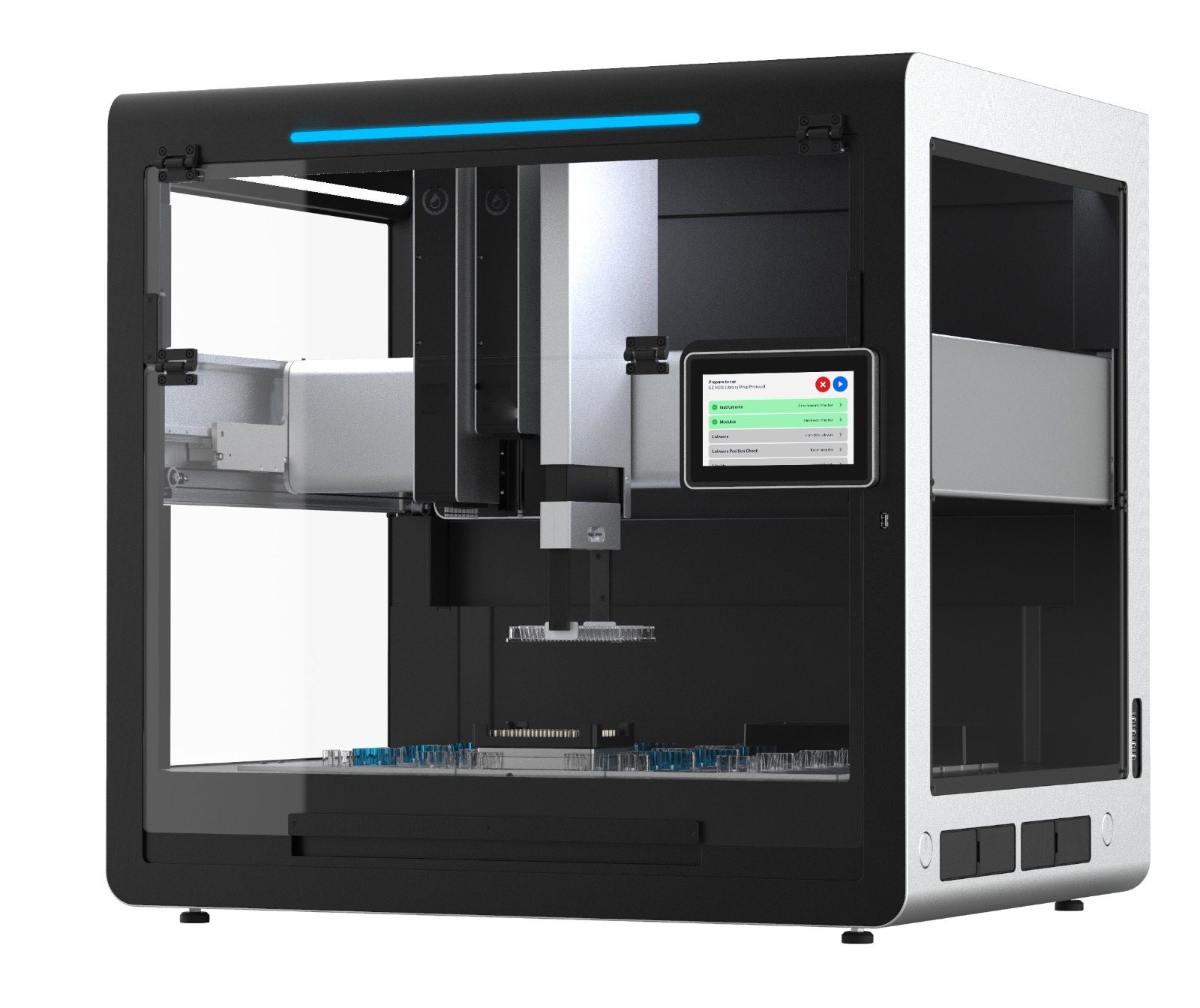

Liquid Handling Robot
SPECIFICATION
General Requirements: Automated benchtop liquid handling system Suitable for ELISA and cell-based assays, sample preparation, and plate replication
Pipetting Performance: Volume range: 2 µL – 1000 µL, Accuracy: ±1–2%, Precision (CV): ≤1–2%, Air displacement pipetting technology
Pipetting Head: 1-channel head (mandatory) Optional 8-channel upgrade Automatic tip pickup and ejection
Deck Capacity: Minimum 8–10 deck positions Compatible with 96- and 384-well plates Reagent reservoirs Tubes (1.5–50 mL)
Automation & Motion: Motorized XYZ robotic arm
Positioning accuracy: ±0.1 mm Collision detection and error alert system
Mixing Capability: Pipette-based mixing Optional orbital shaker module Adjustable mixing speed and cycles
Temperature Control: Optional heating/cooling deck modules
Software Requirements: User-friendly graphical interface Protocol creation and storage Preloaded templates (PCR setup, dilution series) Export run data to Excel/CSV
Liquid Handling Functions: Aspirate, dispense, mix Serial dilution Multi-dispense Plate replication
Additional Features: Barcode reader Plate gripper (automation upgrade) Liquid level detection Installation & Support
Requirements: Compact benchtop design On-site installation, commissioning, and training.
