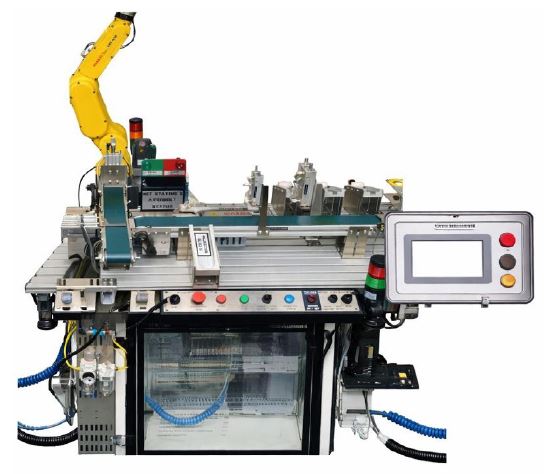

Manufacturing and Packaging Process station

1. This equipment is intended for smart factory education and shall conform to that purpose; it must be configured as a system capable of producing commercially usable products, and as training equipment it shall ensure robustness and stability
2. By utilizing the necessary sensors and software, integrated management of all functions shall be possible, and data acquired during the work process shall be stored and monitored
3. For trainee safety across all processes, the system shall be built as a smart factory platform supporting supervision, maintenance, and workplace safety management, and it shall be upgradeable in performance The system shall be constructed to add intelligence and optimization to manufacturing processes through convergence technologies including IoT-based software development, communications, sensor application/development, and automatic control
4. The equipment shall be configured and manufactured using convergence technologies such as IT, software, and IoT, enabling customized practice for all processed parts supply, assembly, and inspection based on advanced manufacturing technologies like IoT and process simulation
5. Via dedicated software, the system shall implement equipment layout, control design, production simulation, and operation monitoring within a single package; as an all in one system, it shall allow real-time confirmation on a large LED display.
6. The training system shall allow easy on-site checks via various mobile devices and enable corresponding educational activities
7. For user safety, the equipment shall be case-housed; electrical wiring and pneumatic hose routing shall be handled via ducts and cable chains
8. All components of all devices shall be brand-new, unused items
9. Tower type storage rack for workpieces: 1ea
10. Upper case supply cylinder: 1ea
11. Bore (diameter): above 16 mm
12. Cylinder stroke: above 125 mm
13. Allowable operating pressure: 1.0 MPa
14. With flow control valves: 2ea
15. Optical sensor for workpiece confirmation
16. Magnetic sensors: 2ea
17. Belt: above 0.8 x 86 x 826 mm
18. Conveyor mechanism Belt type: PVC material
19. DC motor: 24 VDC, 20 RPM
20. Ball bearings: above 4ea Bracket: for motor mounting
21. Power transmission: pulley for round belt
22. Drop prevention stoppers installed
