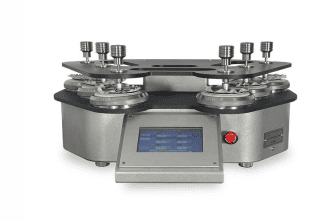

Martindale Abrasion Test Machine
Order Code: 25268451.1.6
Category: General Lab Equipment V
Martindale Abrasion and Pilling Tester Application: Used to evaluate the abrasion and wear resistance of textiles, leathers, and coated fabrics—commonly applied in footwear and glove testing. The machine meets international testing st...
SPECIFICATION
Martindale Abrasion and Pilling Tester
Application:
Used to evaluate the abrasion and wear resistance of textiles, leathers, and coated fabrics—commonly applied in footwear and glove testing. The machine meets international testing standards and includes programmable PLC control with a user-friendly touchscreen interface.
Key Specifications:
| Parameter | Details |
|---|---|
| Number of Stations | 9 stations |
| Drive System | PLC programmable with touchscreen control |
| Rotational Speed | 47.5 ± 2.5 rpm |
| Specimen Holder Weight | 189 ± 2 g |
| Weight of Holder + Spindle | 200 ± 1 g |
| Longitudinal Orientation | 24 ± 0.5 mm |
| Horizontal Orientation | 60.5 ± 0.5 mm |
| Friction Head (Type A) | 28.65 – 0.05 mm |
| Friction Head (Type B) | 90 ± 0.1 mm |
| Cutting Device Diameter | 180 mm (round) and 38 mm |
| Additional Weights for Holder: | |
| - For 9 kPa Pressure | 595 ± 7 g |
| - For 12 kPa Pressure | 795 ± 7 g |
| - For Extended Load | 2.5 ± 0.5 kg with diameter of 120 ± 10 mm |
Consumables for Training – Footwear Testing:
-
Fabric: Crossbred worsted spun, plain woven
-
Mass per unit area: >195 g/m²
-
-
Felt Mount:
-
Diameter: ≥125 ± 5 mm (compatible with Martindale abrading base)
-
Mass per unit area: 750 ± 50 g/m²
-
Thickness: 3 ± 0.5 mm
-
Consumables for Training – Glove Testing:
-
Abrasive Material: Abrading glass paper
-
As per EN ISO 388:2003, Clause 6.1.2
-
Diameter: 38 mm (fitting to Martindale specimen holder)
-
Software:
-
Martindale Testing Software:
-
Includes lifetime license
-
Unlimited usage rights
-
