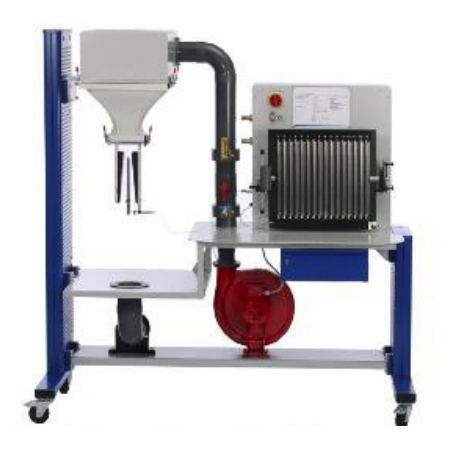

Measurement of boundary layers for Air flow experimental plant
Order Code: 21224591.1.10
Category: General Lab Equipment III
1. investigation of the boundary layer on a flat plate; Flat plate: LxWxH= 420x80x8mm and 15° chamfer facing the incident flow 2. plate leading edge with chamfer 3. Pitot tube for measuring the total pressure; inner diameter= ...
SPECIFICATION
1. investigation of the boundary layer on a flat plate; Flat plate: LxWxH= 420x80x8mm and 15° chamfer facing the incident flow
2. plate leading edge with chamfer
3. Pitot tube for measuring the total pressure; inner diameter= 0.6mm, vertically sliding= 0...18mm, measuring section with 3 positions along the plate= 10mm, 210mm and 410mm from the leading edge
5. vertically sliding Pitot tube can be set to 3 positions along the plate in the measuring section
6. display of static and total pressure on the tube manometer from the Airflow experimental plant
7. accessory for experimental plant
Dimensions and Weight
LxWxH: 810x160x280mm
Weight: approx. 5kg
