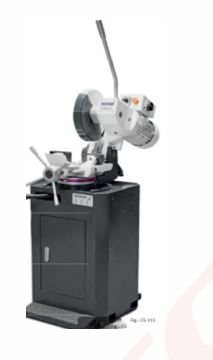

Metal Circular saw-
Order Code: 25268467.34
Category: General Lab Equipment V
FEATURES: Pivot range of ±45° on both sides Easily readable angle scale supports precise work Mitre adjustment within seconds Protected vice spindle Solid machine chassis with drill holes on bo...
SPECIFICATION
FEATURES:
- Pivot range of ±45° on both sides
- Easily readable angle scale supports precise work
- Mitre adjustment within seconds
- Protected vice spindle
- Solid machine chassis with drill holes on both sides for attaching the
- MSR material stand
- integrated pushbutton (on/off )
- Automatic coolant pump switch-on during sawing
- Functional protection device, closed design, mobile
- workpiece
- Solid machine chassis
- Protected vice spindle
- Long handle supports sawing without applying excessive force, includes
- Fast opening mechanism for optimal safety during cutting
- Centrically clamping vise, 4x guided with individually adjustable clamping jaws Cut always occurs in optimal position relative to
- Machine chassis sizes:
- - 546 x 620 x 801 mm
SPECIFICATIONS:
Output
Electrical connection - 400 V/3 Ph ~50 Hz
Motor output - 0.75 / 1.5 kW
Coolant pump motor 40 W
General Information
Cutting angle -45° to +45°
Cutting angle adjustment - Via rotating bearing block
Feed manual
Cutting speed - 19 / 38 rpm
Saw blade diameter - Ø 315 mm
Vice jaw width - 135 mm- Internal Ø 40 mm
