Methods of flow measurement
Order Code: 23246417.40
Category: General Lab Equipment II
Description of Minimum requirements The experimental unit comprises a pipe section containing several pipe elements with different flow resistances, as well as a contraction and enlargement piece.There is also a...
SPECIFICATION
Description of Minimum requirements

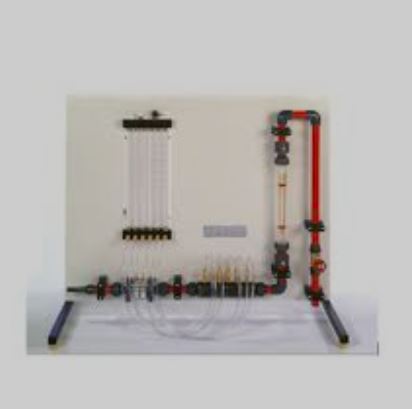

The experimental unit comprises a pipe section containing several pipe elements with different flow resistances, as well as a contraction and enlargement piece.There is also a ball valve integrated in the pipe. There are pressure measuring points with annular chambers upstream and downstream of the pipe elements, which ensure accurate pressure measurement. The pressure measuring points can be connected in pairs to 6 tube manometers in order to determine the pressure loss of a pipe element.The experimental unit is positioned easily and securely on the work surface of the base module.
Technical data
- Venture nozzle area 84-338 mm angle at the inlet 10.5 angele at outlet 4
- Office plate flow meter diameter 14mm
- Measuring nozzle diameter 18.5mm
- Rotameter flow 1700 l/h
- Measuring range pressure 6x0-90mmwc Dimension (LxWxH) <1100 x672x900mm Weight <30kg
- Other consideration
- Manual (English) full experiment and operation
