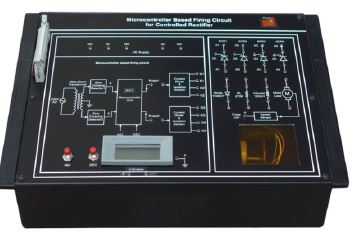

Micro Controller based firing Circuit for Controller Rectifier
Order Code: 25269707.11
Category: General Lab Equipment V
Micro Controller based firing Circuit for Controller Rectifier
SPECIFICATION
Micro Controller based firing Circuit for Controller Rectifier
Technical description:
- This unit generates control pulses (gates) for controlled rectifiers, using a microcontroller (integrated processor). It allows programming of the firing angle, synchronization with the network and dynamic adaptation of the angle depending on the reference signal.
- Relevant technical specifications (estimated):
- Dedicated microcontroller with PWM generation and synchronization
- Programming / configuration interface
- Wrong voltage / current protections
- Interconnection panel to controlled rectifiers
Educational applications:
- Study of modern generation of control pulses
- Comparison of the comparator / ramp method with the digital method
- Real-time adaptation of the firing angle
