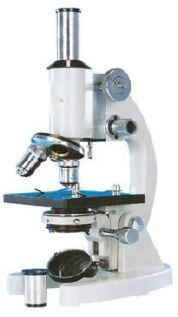

The modern technology microscope is for monocular observation with the eyepiece inclined at 45 0.
The head of the microscope can accept a second vertical tube with an eyepiece for co-observation by the teaching professor.
The construction of the body and base is solid and of an elegant appearance.
It has a built-in power supply for the light source and a brightness adjustment system (dimmer).
Light source, halogen lamp e.g. voltage 6V/ 20W or similar.
Changing the lamp is easy without the use of tools.
The entire metal system is grounded, has an ON/OFF switch, and is powered by a three-pole cable approximately 2 meters long and a plug made of unbreakable plastic (operating voltage 220V).
The stage has an adjustable upper end point for the safety of lenses and preparations.
The microscope has an Abee illumination system, consisting of a system of lenses and rings for concentrating and collecting rays into a light beam, an iris diaphragm and an absorption filter carrier. The condenser is height-adjustable.
The eyepiece head will have one eyepiece with a 45 or 60 degree inclination and a second eyepiece perpendicular to the center of the head for simultaneous observation by the instructor.
The microscope has a three-position rotating "revolver" type ring, on which the objective lenses are attached.
The construction material is durable and does not deteriorate after partial use. The position of each lens is stabilized ("clicked"), so that it does not move due to vibrations.
All microscope lenses are crystal clear, DIN-standard, have the appropriate markings on their bodies and are protected within a sealed metal case:
Two (2) achromatic eyepieces, aplanatic, wide field 012x or 015x.
Objectives with reverse arrangement of the hourglass and equifocal:
An achromatic, aplanatic wide-field 04x
An achromatic, aplanatic wide-field 010x
An achromatic, aplanatic wide-field 040x spring (with spring).
The microscope is accompanied by 2 absorption filters (blue, green), CE certification upon delivery, and a manual of instructions for use and maintenance in a verifiable Greek language, which will include detailed diagrams and photographs.
