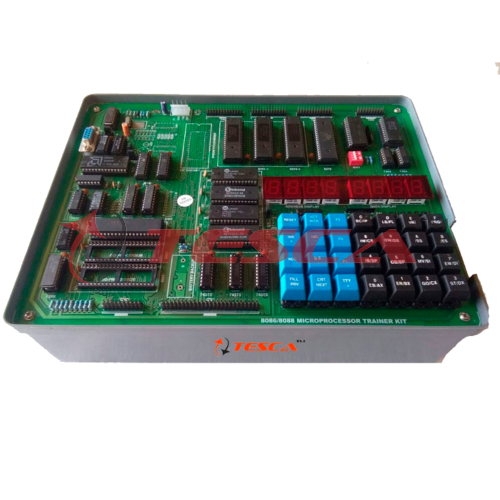

Microprocessor Trainer
Order Code: 22235991.5
Category: General Lab Equipment I
Objective: It can be used to train engineers, to control any industrial process and to develop software for 8086 systems. Technical Specifications: CPU : 8086, 16 bit Microprocessor operating in maximum modeor 8088, 8 Bit microprocessor C...
SPECIFICATION
Objective:
It can be used to train engineers, to control any industrial process and to develop software for 8086 systems.
Technical Specifications:
- CPU : 8086, 16 bit Microprocessor operating in maximum modeor 8088, 8 Bit microprocessor
- Co-Processor : 8087 Numeric Data Processor
- I/O : 8089 I/O Processor Memory
- EPROM : 16K bytes of EPROM loaded with monitor expandable to 1024 bytes using 27256
- RAM : 16K bytes of CMOS RAM expandable to 256Kbytes using 6264/62256Input/Output
- Parallel : 24 I/O lines expandable to 72 lines (3nos of 8255A)
- Serial : EIA RS-232-C (Main)
- Timer / Counter : Three 16 bit timer/counter through 8253
- Other Interfaces : EPROM Programmer for 2764/27128/27256
- Keyboard & Display : 28 Keys and 8 seven segment display
- BUS : All address, data and control signal (TTL compatible available at edge connector as per Multi Bus.
- This Kit Also Has its own resident Bus 9.5 x12.5"
- Power Supply : 5 Volt, 2.5 Amp for Kit + 12 Volt , 250mA for CRT +24/21 volt for EPROM Programmer
- Operating Temperature : 0 to 50 °C
- Power Requirement : 220 VAC +10%, 50Hz
Standard Accessories:
- Power Cord & Instruction Manual
