Features:

• Modular System
• Energy Management
• Augmented Reality
• Manufacturing Execution System
• Over All Equipment Effectiveness (OEE)
• Management Information System
• Intelligent Maintenance system

Application :

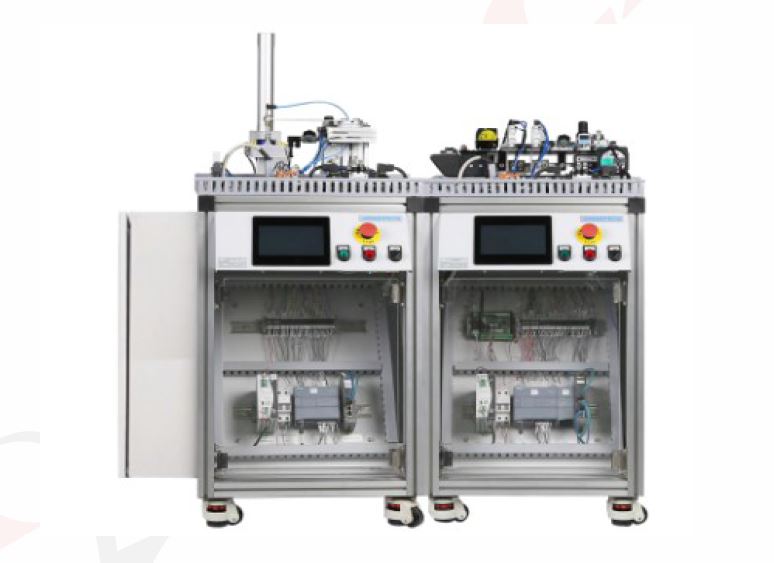

The Modular Manufacturing System with Industry 4.0 is a miniature Smart Factory Automation System which demonstrates the application of latest manufacturing processes and Technologies in the complete value chain. It enables user to learn and understand the following technologies connected to Industry4.0.

• Digitisation of entire value chain
• Concepts, Architecture and design of IIoT systems
• Simulate and develop the concept of various integration associated with Industry 4.0 such as Vertical, Horizontal, Integrated & Digital workforce
• Remote monitoring and controlling the machines in real time
• Experiencing AR (Augmented Reality) through Mobile application
• Data communication to cloud through IOT Gateway module and Kepware (OPC)
• Development of web applications for different scenarios

Technical Specifications

• Size (L x W x H) in cm: 135 x 70 x 150
• Installation: Vertical
• Medium: Compressed air
• Operating Voltage (Primary): 230V AC, 50Hz
• Power Consumption: 1 KW (1.4 KVA)
• Operating Voltage (Secondary): 24V DC
• Material: CRCS, Aluminium, SS

Function :

• The Modular Manufacturing System with Industry 4.0 is a miniature factory which includes the industry standard processes such as Feeder and Sorting. This system produces orders executed from Manufacturing Execution System (MES) which is an interface for the complete value chain management. The feeder station feeds the work pieces to the sorting station. The sorting station segregates the work pieces based on the RFID tag.
