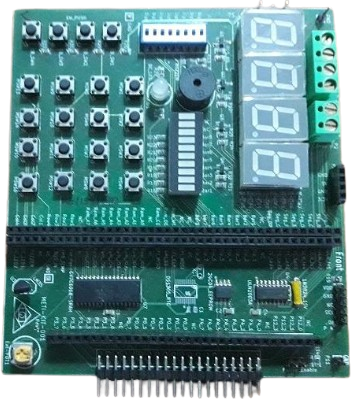

MULTI-FUNCTIONAL PERIPHERAL BOARD
SPECIFICATION
i. Visual indicators: minimum of 16 individual LED indicators for logic state and diagnostic Monitoring.
ii. Manual input: minimum of 16 individual tactile or slide switches for digital input simulation.
iii. Numeric display: integrated quad (4-digit) 7-segment multiplexed display for numeric Output.
iv. Alphanumeric display: integrated 20x4 character alphanumeric LCD, industry-standard HD44780
controller compatible.
v. Graphical support: support for Graphical LCD (GLCD) module via an intelligent conversion
interface compatible with standard driver protocols.
vi. On-Board Sensors: integrated Light-Dependent Resistor (LDR) and at least one (1) precision
potentiometer for analog-to-digital (ADC) experiments.
vii. Audio output: integrated audio output socket (3.5mm or equivalent) for frequency Generation
And signal modulation tasks.
