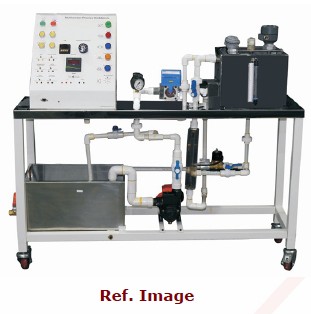

Multifunction Process Workstation

Key Features

• Temperature, Flow, Level, and Pressure Measurement
• Use of Industrial Process Control elements like Capacitive Level Transmitter,
• Temperature Transmitter, Flow Transmitter, Pressure Transmitter, RTD and K Type
• Thermocouple Sensor, Rotameter and PID Controller, Solenoid Valve
• M.S Powder Coated Electrical Control Panel contain Start, Stop, Pump, Solenoid
• Valve, Stirrer button, Indicators for Pump, Heater, Stirrer, Solenoid Valve, Audio
• Indicator, Visual Indicator, Ammeter
• Real-time Ethernet based DAQ interface with ADC & Digital input/output
• Process Loop Tuning & Stable Process
• Process Control loops
• User Friendly Software
• Transducer/Transmitter Calibration
• Piping and instrumentation diagram
• Leak proof Safety measures, sturdy piping
• Enhanced Electrical Safety considerations
• Heat Transfer concepts
• Built-In Instrumentation
• SS Sump tank for inlet and out let of water
• Robust construction
• Platform with Caster wheel arrangement for ease in movement Technical Specifications
• Data Acquisition System (DAQ) Analog input : 8nos.
• Analog output : 2nos.
• Digital input : 8nos.
• Digital Output :8nos.
• ADC Resolution (In Bit) :24
• Unity gain amplifier (Buffer): 2(0-5V) USB: Yes
• Ethernet: Yes
• Data Login (PC based): Yes Software: Yes
• Wheel Flow Transmitter :1no. Range :0-500LPH
• Supply Voltage :24V Output :4-20mA
• Level Transmitter :1no. Supply Voltage :+24VDC Output Voltage :4mAto20mA
• Cable Entry :2X1/2 inch BSP, SC gland brass
• User Interface :4 digit display +4Keys Readout :0-100%,4-20 mA LED (red), Digital, 2-1/2
• Outputs :420mA PNP output(3wire) or galvanically isolated(4wireloop) (User selectable) 4 - 20 mA output
• is over current safe and compatible with DAQ Measurement Range: 10- 50000pF.
• Calibration: Calibratable over measurement range.
• Calibration method: Easy (Using DIP Switches)
• Sensing rod material: Stainless steel (SS304)
• Insulation: Full PTFE
• Mains:+24VDC@25mA (reverse polarity safe)
• Probe Length :250mm Pressure Transmitter :1no.
• Measuring Range :0-1bar Output Signal :4-20mA
• Supply Voltage :24VDC
• Temperature Transmitter :1no. Supply :+24VDC
• Output: 4 to 20mA
• Temperature Range :0to100C
• RTD Temperature Sensor :1 no. Wire :3Wire
• Rod Length :6 inch Temperature Range :(-99 to 850°C)
• Thermocouple Sensor :1no. (K Type)
• Type: K Type Wire :2Wire
• Rod Length :6 inch Temperature Range: (-200 to1250°C)
• Industrial PID Controller :1 no Input: RTD(PT100), Ktype Thermocouple Display
• 7segmentLED, dual display Control Action : PID &ON/OFF Supply Voltage :230VAC
• Relay Action: Forward for cooling and reverse for heating
• Solenoid Valve :1no. Supply Voltage :+230VAC
• Pressure range :0 to10kg/cm2 Electrical Control panel:-MS Powder coated panel with switches, indicator, Test Points, PID and DAQ, Ammeter on front face, DAQ Mounted on, multi strand wire with proper insulated, lugs, ferruling & neat wire dressing& clamping
• Push to On Switch :6 nos.
• Toggle Switch :7nos.
• Indicator Lamp :5nos.
• Audio Indicator :1no.
• Ammeter :1no.
• Range:0to5A,0.2%resolution Stirrer :1no.
• Supply :12V DC Rotameter :1no. Body : Acrylic Type Range :0-1000LPH
• Submersibles Pump :1no.
• Caster Wheel :4nos.
• Heater :1no.
• Supply:230VAC (1000Watt)
• Process (Measuring)Tank :1no. Supply (Sump)Tank: 1 no
• List of Accessories: Mains Cord- 1
• Ethernet Cable-1 Flexible Pipe-1meter
