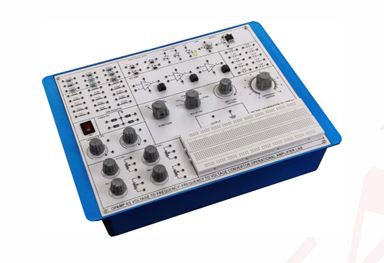

Operational amplifier Trainer kit for different experiments with built in power supply, generators
Order Code: 25268469R.45
Category: General Lab Equipment V
SCOPE OF LEARNING: Study of Operational Amplifier and Its applications. TECHNICAL SPECIFICATIONS: Power Supplies: DC Power Supply IC Regulated +12V DC, 150mA (Fixed). DC Power Supply IC Regulated +15V ...
SPECIFICATION
SCOPE OF LEARNING:
Study of Operational Amplifier and Its applications.
TECHNICAL SPECIFICATIONS:
Power Supplies:
- DC Power Supply IC Regulated +12V DC, 150mA (Fixed).
- DC Power Supply IC Regulated +15V DC, 150mA (Fixed).
- DC Power Supply IC Regulated +5V DC, 150mA (Fixed).
- DC Power Supply IC Regulated 1.5V-10V DC, 150mA (Negative).
- DC Power Supply IC Regulated 1.5V-10V DC, 150mA (Positive).
- Operated on Mains power 230V, 50Hz +10%
Function Generator:
- Sine, Square and Triangle 0-100KHz, 0-20Vpp
Components are mounted on the panels are:
- LM741 Operational Amplifiers: 3 Nos.
- LM324 Dual Op-Amp
- 20Pin Zif Socket
- One Bread Board.
- Resistors SMD
- Capacitors
- Zener, Led, Transistor,Mosfet and Diodes
- Variable Resistor 1K,10K,100K,1M
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Fuse for Short Circuit protection
- Instruction manual.
- Connections are brought out through 4mm Brass Sockets.
- Patch Cords 4mm.
- The trainer is housed in ABS Plastic cabinet.
- Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
- CRO
- Digital Multimeter
