ORIFICE, VENTURY, ROTAMETER TRAINER (WITH DIGITAL TURBINE FLOWMETER)

Order Code: 25269307.4

Category: General Lab Equipment V

ORIFICE, VENTURY, ROTAMETER TRAINER (WITH DIGITAL TURBINE FLOWMETER)



SPECIFICATION

ORIFICE, VENTURY, ROTAMETER TRAINER (WITH DIGITAL TURBINE FLOWMETER)

Key features
The Setup for Calibration of Flow Sensor gives an idea regarding Flow Sensor & Flow Transmitter Principle. It outlines the procedure for calibration of flow Sensors/Transmitters.

Technical Specifications

  • Sump tank - Material: Stainless Steel, 1.5 mm thick/ P.P 5mm thick
  • Capacity: 30 liter
  • Dimension: 1ft (L)x1ft (W)x1 ft (H)
  • Piping - 1” GI, Class B , with 1’’ SS ball valves
  • Centrifugal Pump - 1/ ½ H.P, 1φ 230 V AC supply
  • Rotameter - Range: 0-2000/2500 LPH, Glass tube type/acrylic body, Bob Material: SS304
  • Connection: 1”, Mounting: Inlet Bottom Outlet Top
  • Orifice - 1” Line size, concentric type, MOC: Polypropylene (pp)
  • Venturi - 1” Line size, MOC: MS/CRC
  • Manometer- U-Tube manometer, H: 400 mm, Panel mounting type.
  • Flow Transmitter - Type: Digital Turbine (Wheel Flow Meter) Range: 0-2000 LPH, Output: 4 – 20mA
  • Flow Indicator - 3 ½ digit display, 230 V AC operated, Cut out: 92 mm× 46 mm
  • Range: 0-2000 LPH, Input: 4-20 mA
  • Electrical Control Panel - MS Powder coated panel with switches, indicator, Test, Points, controller on front facia, Use of 0.5 sq. mm multistrand wire with Proper insulated Lugs, Ferruling & neat wire Dressing & clamping Wires & power cables are Seated through 1’’×1’’ PVC cable tray.
  • Dimension: 1ft (L) ×1ft (W) ×1ft (H).

Features

  • User Friendly, Self-Explanatory Systems.
  • Robust Construction.
  • Enhanced Electrical Safety Considerations.
  • Training Manuals mimic Charts for Operation Ease.
  • Inbuilt Safety Measures to avoid improper usage.
  • Flow meter with pulse output & flow indication on LED display.
  • Manometer for DP Measurement across Orifice Plate, Venturi meter.
  • Caster wheel mounted movable frame

Range of Experiments

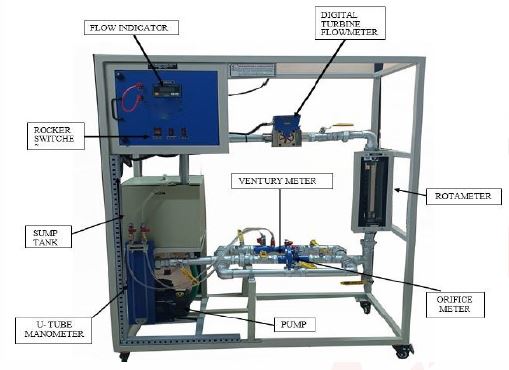

  • Study of Digital Turbine type Transmitter, Flow Sensors such as Orifice, Venturi, Rotameter, with the help of Manometer
  • Calibration of Flow Sensors/Transmitters

System Dimension - 43”. (L) X 21”. (W) X 51”. (H)
Weight: Approx. 81kg.
