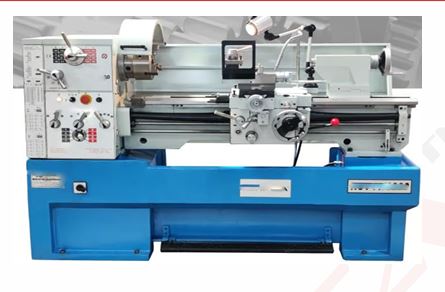

Parallel turning and threading lathe
Order Code: 25268467.6
Category: General Lab Equipment V
Technical Specification : Swing Over Bed - 460mm Swing Over Cross slide - 270mm Swing in Gap Diameter - 690mm Admit Between Center - 1000mm Spindle bore - 58mm Main Motor Power - 5.5Kw ...
SPECIFICATION
Technical Specification :
- Swing Over Bed - 460mm
- Swing Over Cross slide - 270mm
- Swing in Gap Diameter - 690mm
- Admit Between Center - 1000mm
- Spindle bore - 58mm
- Main Motor Power - 5.5Kw
STANDARD ACCESSORIES:
- 250mm x 3 Jaw Self-Centering Chuck 1 No.
- 300mm x 4 – Jaw Independent Chuck 1 No.
- Steady Rest (13-152mm) 1 No.
- Follow Rest (13-80mm) 1 No.
- Face Plate 350mm dia 1 No.
- Foot Brake 1 No.
- Coolant System 1 No.
- Machine Lamp 1 No.
- Centre 1 No.
- Centre Sleeve 1 No.
- Toolbox 1 No
OPTIONAL ACCESSORIES: (DOESNT COME WITH THE MACHINE)
- American Type Quick change tool post with 3 tools holder
- Taper turning attachment
- Key way milling attachment
- ½” Drill Chuck, arbor, socket
- 2 Axis DRO (DIGITAL READ OUT) unit with High Precision Scales & fittings
- 6” Cap. Tool post grinder with 1 HP 3 Phase Electrical Motor
- Revolving center MT – 4
