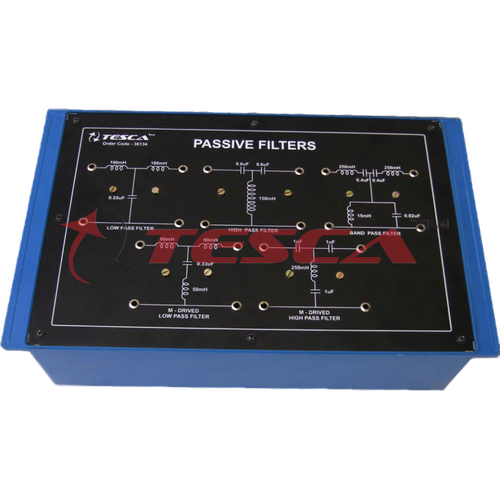

Passive Filters Trainer

Order Code: 22236141.7

Category: General Lab Equipment II

Technical Specification Low-pass Filters BPF and BSF Filters PBG Type Filters,DGS Type Filters Function Generator &amp DC Power Supply Module Waveforms: Sine, Triangle, Square, TTL Pulse Amplitude: > 10 Vpp Impedance: ...



SPECIFICATION

Technical Specification

  • Low-pass Filters
  • BPF and BSF Filters
  • PBG Type Filters,DGS Type Filters Function Generator &amp

DC Power Supply Module

  • Waveforms: Sine, Triangle, Square, TTL Pulse
  • Amplitude: > 10 Vpp
  • Impedance: 50Ω ±10%
  • Duty Control: 30% ~ 60% Display: 6-Digit LED Display
  • Frequency Range: 10Hz to 100 kHz (4 Ranges), 100Hz to 1 MHz (4 Ranges)
  • Frequency Control: Separative Coarse and Fine Tuning
  • Constant Voltage Output: ±5V, ±12V
  • Variable Voltage Output: 0V ~ ±15V
  • Power source: 220V AC ±10%, 50Hz
