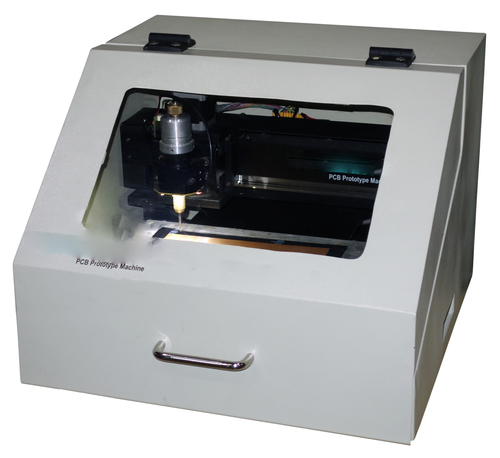

PCB Design and Development,PCB Prototype Machine
Order Code: 262710001.25
Category: General Lab Equipment V
PCB Design and Development,PCB Prototype Machine
SPECIFICATION
PCB Design and Development,PCB Prototype Machine
CNC-based PCB prototyping system for drilling, milling, engraving, and routing of PCBs.
Working area: 230 × 200 × 15 mm. Minimum drill size: 0.3 mm. Minimum trace width: 0.2 mm (8 mil). X/Y resolution: 0.006 mm. Spindle speed up to 25,000 RPM with BLDC motor. Stepper motor controlled X-Y-Z axes. Automatic depth sensing and auto-level surface inspection.
Manual tool change with 1/8 inch tool holder. Supports Gerber (RS274X), Excellon, DXF, and G-code files. USB interface with PC-based software (Windows compatible). Integrated dust and sound enclosure. Power supply: 110–220V AC, 150W. Machine weight ~28 kg. Suitable for single and double-layer PCB prototyping without chemical etching. Standard Tool Kit: 23-bit set including router bits, engraving bits (0.2 mm, 0.5 mm, 1.5 mm), and drill bits (0.6 mm to 3 mm range)
Software & Accessories: TINA Design Suite (Single User License), PCB design software with examples, USB drivers, copper clad boards (single & double side), tools (pliers, brush, Allen keys), power supply, USB cable, and accessories.
